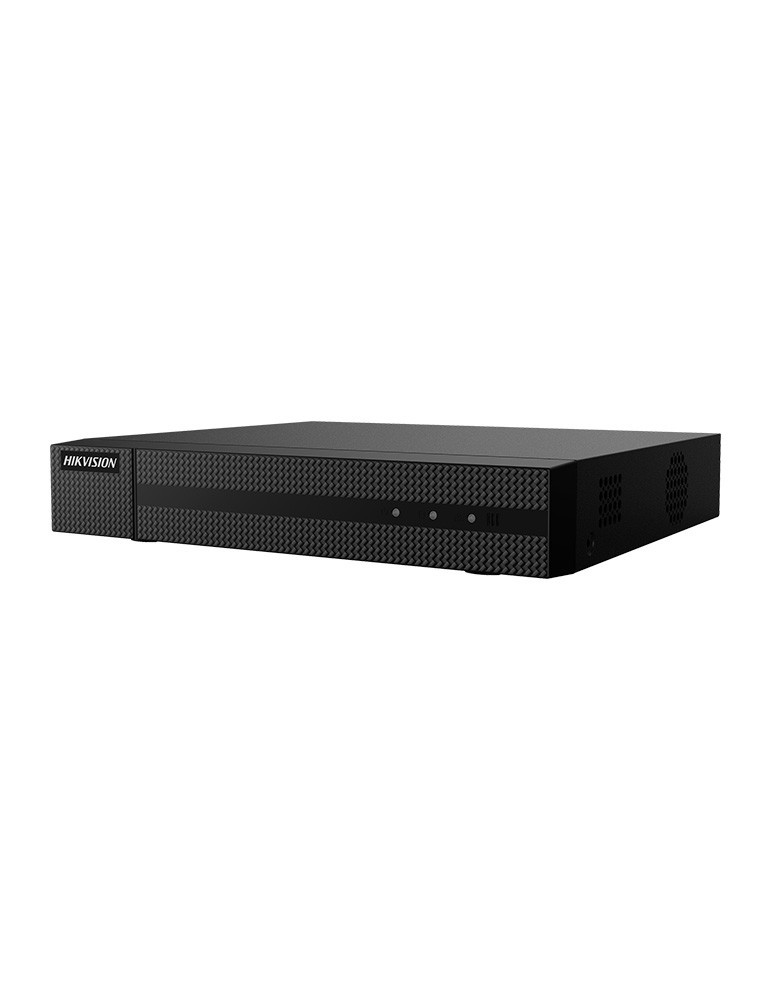

[HWD-5104MH(S)] HIKVISION Hiwatch Grabador DVR HD Camera Analógica 4 CH
- 4 Turbo HD/AHD/entrada de interfaz analógica.
- Entrada de video de 4 canales y audio de 1 canal.
- Entrada de video IP de 1 canal.
- 1 interfaz SATA.
- HD1080P Lite: 25(P)/30(N) fps/canal, caja 260 1U
- Grabadora de video x1
- cable de alimentación sata x1
- Manual x4
- Tornillos para HDD x4
- cable de datos sata x1
- adaptador de CA/CC x1
- Ratón x1
| Video/Audio input | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog video input | 4-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 1-ch (up to 5-ch) Up to 1080p resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
| Video/Audio output | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output |
| Encoding resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
| Sub-stream Frame Rate | 4CIF/CIF/QVGA@25 fps (P)/30 fps (N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Network management | |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 4 TB capacity for each disk |
| External interface | |
| Two-way audio input | Reuse the first audio input |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC, 1.5 A |
| Consumption (without HDD) | ≤ 16 W |
| Working temperature | -10 °C to 55 °C (14 °F to +31 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without HDD) | ≤ 1 kg (2.2 lb) |
HWD-5104MH(S)
Ficha técnica
- Material
- Metal
- Discos
- 1
- Entradas de Vídeos
- 4
