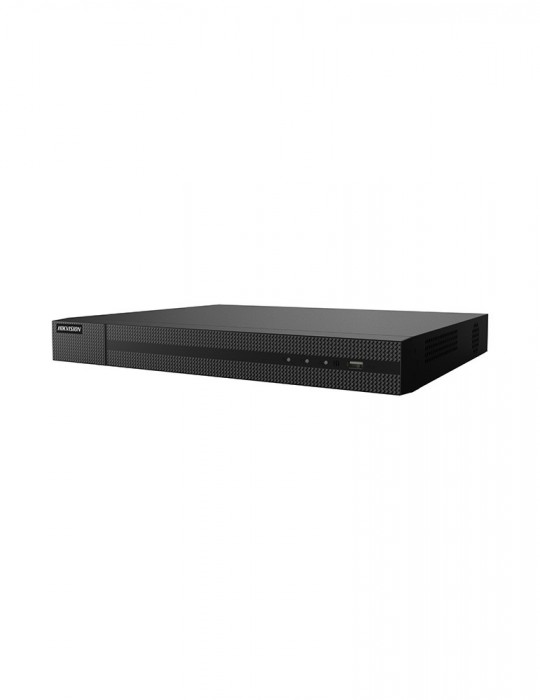

[HWN-2108MH-8P(C)] HIKVISION Hiwatch Grabador NVR Para Cámaras IP
- Tasa de bits de entrada máxima de 60 Mbps (hasta 8 canales de video IP)
- 8 CH 8 Puertos POE
- H.265/H.265+/H.264/H.264+,
- 1 interfaz SATA,
- 8 interfaces de red PoE independientes,
- caja mini 1U (Metal)
- Grabadora NVR x1
- Cable de red 1.5M x1
- cable de alimentación sata x1
- quick guide x1
- Tornillos para HDD x4
- cable de datos sata x1
- Cable de alimentación x1
- adaptador de CA/CC x1
- Ratón x1
| Video/Audio input | |
| IP video input | 8-ch Up to 6 MP resolution |
| Network | |
| Incoming bandwidth | 60 Mbps |
| Outgoing bandwidth | 60 Mbps |
| Remote connection | 16 |
| Video/Audio output | |
| Recording resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
| Decoding | |
| Decoding format | H.265+/H.265/ H.264+/H.264 |
| Live view/Playback resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 8-ch |
| Decoding Capability | 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps) |
| Stream type | Video, Video & Audio |
| Network management | |
| Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Camera protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
| Hard Disk | |
| SATA | 1 SATA interface |
| Hard Disk Capacity | Up to 6TB capacity for each disk |
| External interface | |
| Network interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 |
| POE Interface | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 75W |
| POE Supported standard | IEEE 802.3 af/at |
| General | |
| Power supply | 48 VDC |
| Power | ≤ 90W |
| Consumption (without hard disk and PoE) | ≤ 10 W |
| Working temperature | -10 to +55º C (+14 to +131º F) |
| Working humidity | 10 % to 90 % |
| Chassis | 1U chassis |
| Dimensions(W × D × H) | 260 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| Weight | ≤ 1 kg (2.2 lb) |
| Certification | |
| CE | EN50130-4, EN 61000-3-2,EN 61000-3-3 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
HWN-2108MH-8P(C)
Ficha técnica
- Material
- Metal
- Discos
- 1
- Capacidad de Decodificación
- 4-ch @ 1080P
- Entradas de Vídeos
- 8
- POE Puertos
- 8
