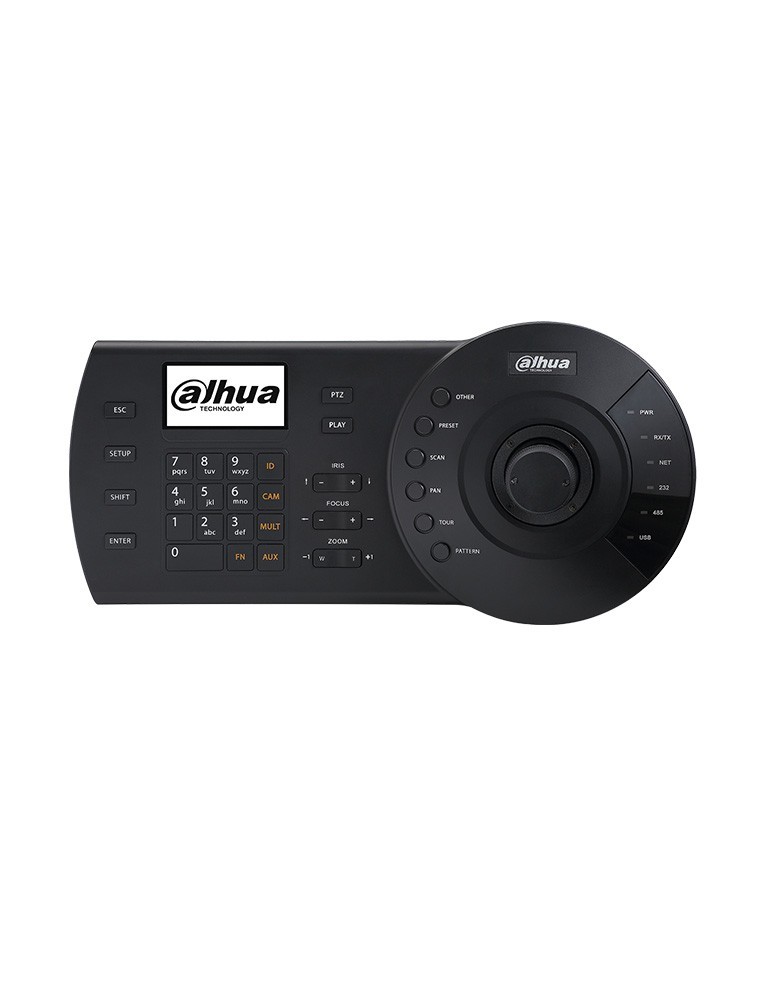

[DHI-NKB1000] DAHUA Network Keyboard Control

[DHI-NKB1000] DAHUA Network Keyboard Control

Keyboard to Control

  • Dahua High Speed Dome (all models)
  • Dahua Standalone DVR (KBD1000 & NKB1000 only)
  • Dahua Network High Speed Dome (NKB1000 only)
  • Network Video Server (NKB1000 only)

Connection

  • NKB1000: RS485, RS422, USB, RS232 & Network

Functions

  • Three Dimensional Joystick Control of PTZ Functions
  • Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern

Auxiliary Functions

  • On-Screen Menu & User Operation Procedure Tips
  • Connect to SmartPSS via USB (NKB1000 only)
DHI-NKB1000
We do not have stock available for this product
DAHUA
Offer: 205,00 € VAT Excluded
  248,05 € VAT Included (21%)
Quantity
This product is out of stock, we can order it for you quickly, contact us:
Telephone：+34 910 35 36 71

Description

Model

Model

NKB1000

KBD1000

KB1000

General

Keyboard Key panel

Electromechanical

Joystick

3-axis, vector-solving, with twisting, return to-center head

Keyboard Connector

RJ-45, RS232,
RS485, RS422, USB

RS232, RS485,
RS422, USB

RS485, RS422, USB

Keyboard Communication

Direct Mode, Network Mode

Direct Mode

Direct Mode

Direct Mode

Interface:
1 RS232/2 RS485 DVR Protocol: DH-2 Dome Protocol: DH-SD1/PELCO-D/
PELCO-P, etc

Interface:

1 RS232/2 RS485

Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc

Interface:

2 RS485

Dome Protocol: DH-SD1/PELCO-D/PELCO-P, etc

Network Mode

Interface: RJ45
DVR/Network
Dome:
IP Address/Port/
Protocol

N/A

N/A

Display

LCD, 75.2mm×33.85mm

Maximum Number of Users

64 (including "admin")

Max RS485 Addresses (Each User)

256

Max Number of PTZ (IPC) That Can be Added over Network (Each User)

2048

Environmental

Power Supply

Power adapter, input 100V~240V 50Hz/60Hz, output DC12V/1000mA

Power Consumption

5W

Working Temperature

-10℃~+55℃

Working Humidity

10% ~ 90%

Atmosphere Pressure

86kpa~106kpa

Dimension

330mm×160(140)mm×37.5(21)mm (W×D×H)(height: 100mm
including joystick)

Weight

2.5kg (Including package)
