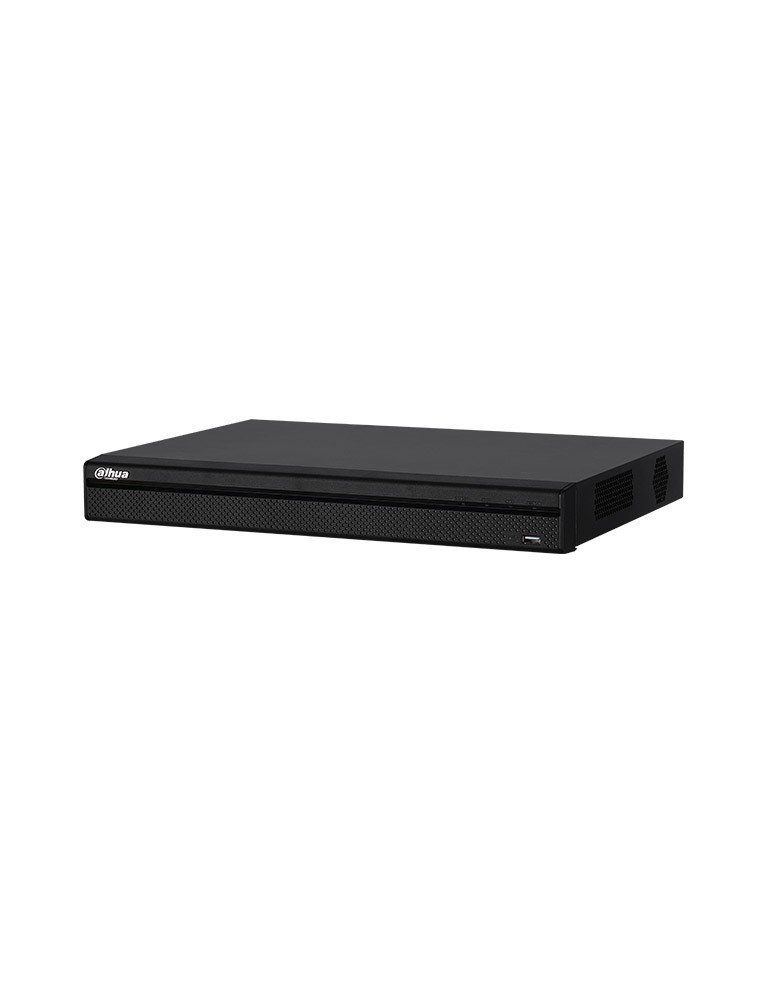

[DH-XVR5216AN-4KL-16P] DAHUA Video Recorder HDCVI 5N1 Lite Series 8CH/16CH Smart H264+ HDCVI/AHD/TVI/CVBS/IP 4K SATA

[DH-XVR5216AN-4KL-16P] DAHUA Video Recorder HDCVI 5N1 Lite Series 8CH/16CH Smart 4K

  • HDMI/VGA simultaneous output 1080P/60Hz
  • H.264+/H.264 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Up to 16-ch Analog Video input
  • Up to 24-ch IP camera input  (up to 6MP)
  • Long transmission distance over coax cable
  • Smart Search and Intelligent Video System
  • 2 SATA interface,Up to 6TB capacity for each disk
  • Supports 8-ch HDCVI PoC Camera
  • Note: HDCVI PoC system temporarily does not support balun accessing and UTP transmission
DH-XVR5216AN-4KL-16P
This product is available with a medium stock level
DAHUA
Offer: 360,00 € VAT Excluded
  435,60 € VAT Included (21%)
Quantity

  • Grabadora XVR x1
  • adaptador de CA/CC x1
  • Cable de alimentación x1
  • cable de datos SATA x2
  • cable de alimentación SATA x2
  • Tornillos para HDD x8
  • Ratón x1
  • quick guide x1

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

8/16 Channel, BNC

HDCVI Camera

4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

PoC Camera Input

Supports HDCVI PoC Camera

IP Camera Input

8+4/16+8 Channel, each channel up to 8MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.264+/H.264

Resolution

4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF

Record Rate

Main stream: 4K(1~7fps); 6MP(1~10fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)

Sub steram:960H(1~15fps);

D1/CIF/QCIF(1~25/30fps)

Bit Rate

1Kbps ~ 8192Kbps Per Channel

Record Mode

Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Display

Interface

8CH:1 HDMI, 1 VGA

16CH: 1 HDMI, 1 VGA, 1 TV

Resolution

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768

VGA: 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display

When IP extension mode not enabled:

8CH: 1/4/8/9

16CH: 1/4/8/9/16

When IP extension mode enabled:

8CH: 1/4/8/9/16

16CH: 1/4/8/9/16/25

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (1000M)

Network Function

HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, IP Search (Support IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 2.42, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss,Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

8CH: 1/4/9

16CH: 1/4/9/16

Search Mode

Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

2 SATA Ports, up to 6TB capacity for each disk

eSATA

N/A

Auxiliary Interface

USB

2USB Ports (1 USB 2.0 , 1 USB 3.0)

RS232

N/A

RS485

1 Port, for PTZ Control

Electrical

Power Supply

8CH: DC48V/2A

16CH: DC48V/2.5A

Power Consumption

8CH: <10W (Without HDD)

16CH: <20W (Without HDD)

Construction

Dimensions

1U, 375mm×287mm×53mm (14.8" x 11.3" x 2.1")

Net Weight

2kg (4.41lb) (without HDD)

Gross Weight

3.62kg (7.98lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH

Storage Conditions

-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH

Third-party Support

Third-party Support

Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

UL: UL 60950-1
