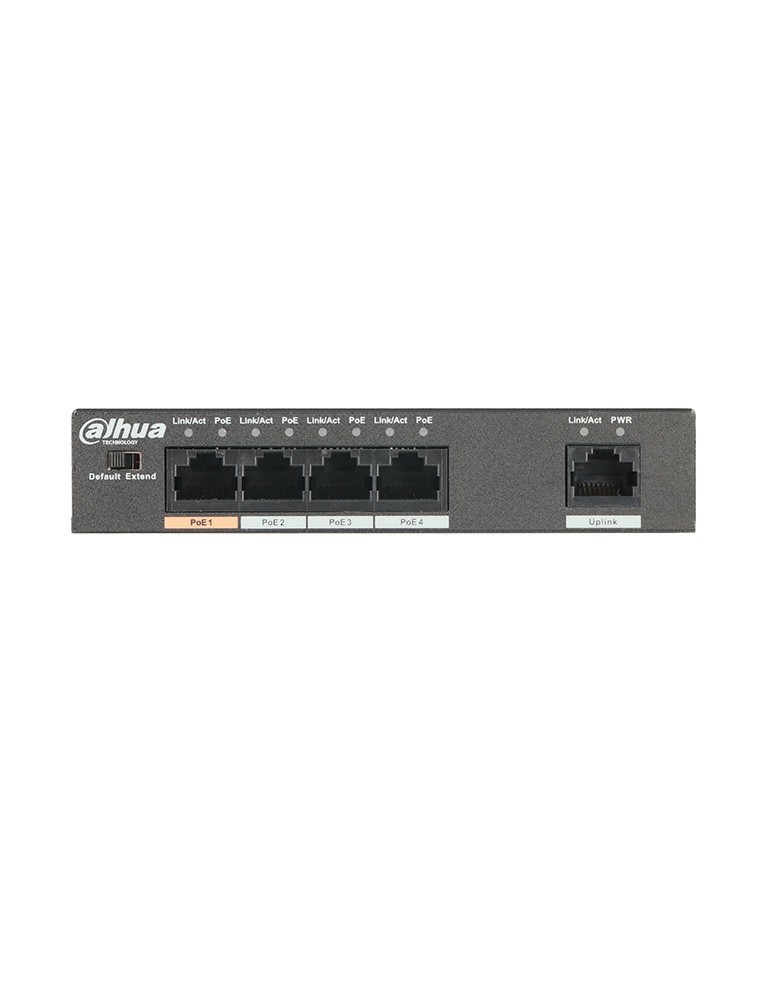

[PFS3005-4ET-60] DAHUA Gigabit Unmanaged Desktop Switch 4 Ports

[PFS3005-4ET-60] DAHUA Gigabit Unmanaged Desktop Switch 4 Ports Fast Ethernet 10/100Mbps

Layer two commercial switch
Supports PoE power management
Supports wall-mount installation

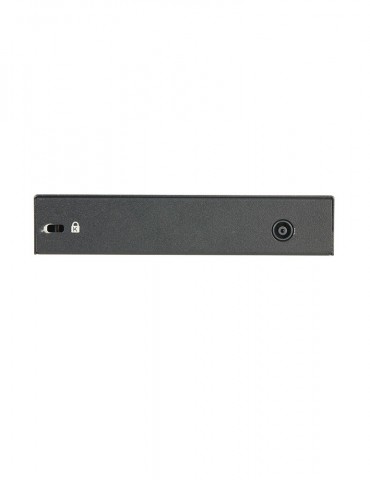

Supports anti-theft lock hole
MAC auto learning and aging, MAC address capacity is 1K
Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
RJ45 port supports 10/100Mbps self-adaptation
Supports 250 meters long distance PoE transmission
Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply

Offer: 35,00 € VAT Excluded

42,35 € VAT Included (21%)

Quantity

Switch POE x1
adaptador de CA/CC x1
Cable de alimentación x1
Manual de usuario x1

Technical Speciﬁcation

Model

DH-PFS3005-4ET-60

Ethernet Port

1*10/100 Base-T

4*10/100 Base-T (PoE power supply)

PoE Power Consumption

Port1≤60W, Port2-4≤30W, Total≤60W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1Gbps

Packet Forwarding Rate

744Kpps

Packet Buffer Memory

448Kb

MAC Table Size

Flow Control

Enable

Application Humidity

5%~95%

Power

DC48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

Dimension(W×D×H)

130mm×85mm×26mm

Reference DH-PFS3005-4ET-60

DH-PFS3005-4ET-60_NEW

Download (159.66k)
