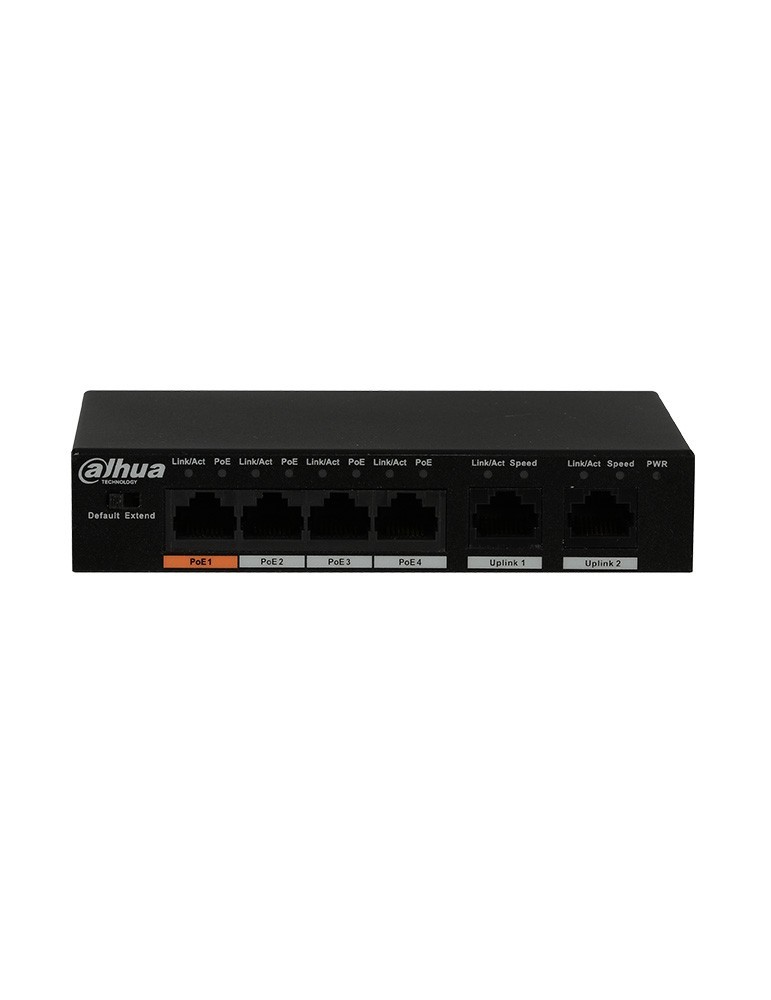

[PFS3006-4ET-60] DAHUA Gigabit Unmanaged Desktop Switch 4 Ports Fast Ethernet

[PFS3006-4ET-60] DAHUA Gigabit Unmanaged Desktop Switch 4 Ports Fast Ethernet

  • Layer two commercial switch
  • Supports PoE power management
  • Supports wall-mount installation
  • Supports anti-theft lock hole
  • MAC auto learning and aging, MAC address capacity is 2K
  • Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
  • RJ45 port supports 10/100 Mbps self-adaptation
  • Supports 250 meters long distance PoE transmission
  • Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
DH-PFS3006-4ET-60
This product is available with a high level of stock
DAHUA
Offer: 39,00 € VAT Excluded
  47,19 € VAT Included (21%)
Quantity

  • Switch POE x1
  • adaptador de CA/CC x1
  • Cable de alimentación x1
  • Manual de usuario x1

Technical Specification

Model

PFS3006-4ET-60

Ethernet Port

2*10/100Mbps Uplink ports

4*10/100 Mbps PoE ports

PoE Power Consumption

Port1≤60W, Port2-4≤30W, Total≤60W

PoE PIN Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Power Management

Support

PoE Protocol

IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity

1.8Gbps

Packet Forwarding Rate

890kpps

Packet Buffer Memory

768Kb

MAC Table Size

2K

Flow Control

Enable by default

Application Humidity

5%~95%

Power

DC 48~57V power adapter

Lightning Protection

Common Mode 2KV

Differential Mode 1KV

ESD Protection

Air Discharge 8KV

Contact Discharge 6KV

Working Temperature

-10°C~55°C

Weight

290g

Dimension(W×D×H)

130mm×85mm×26mm
DH-PFS3006-4ET-60
