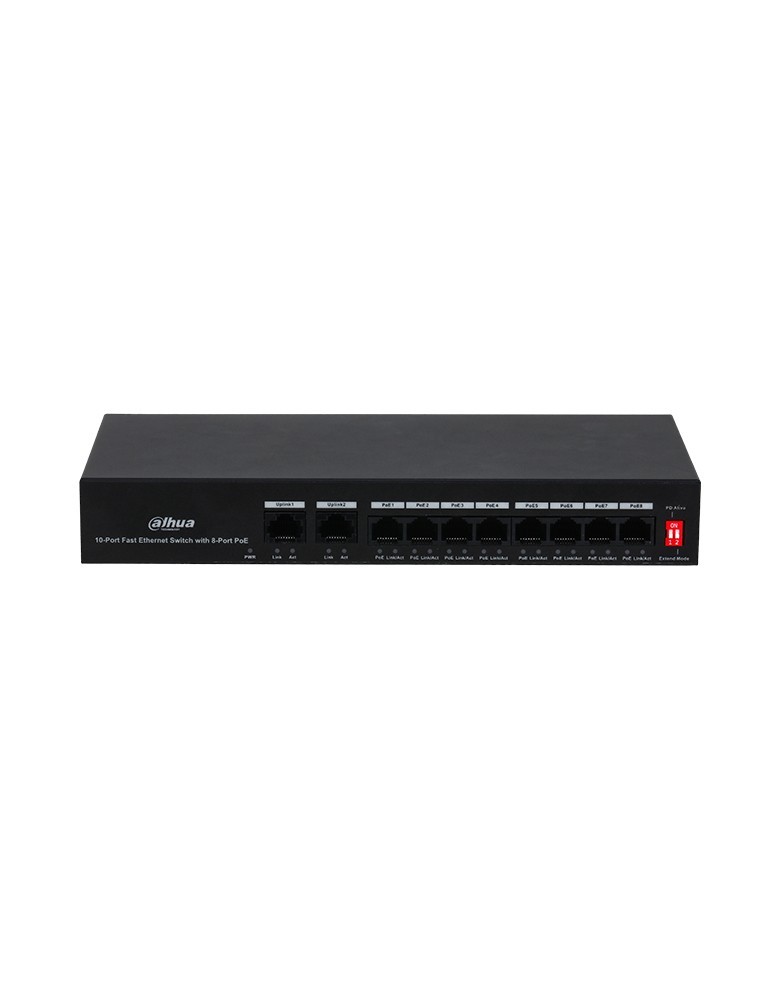

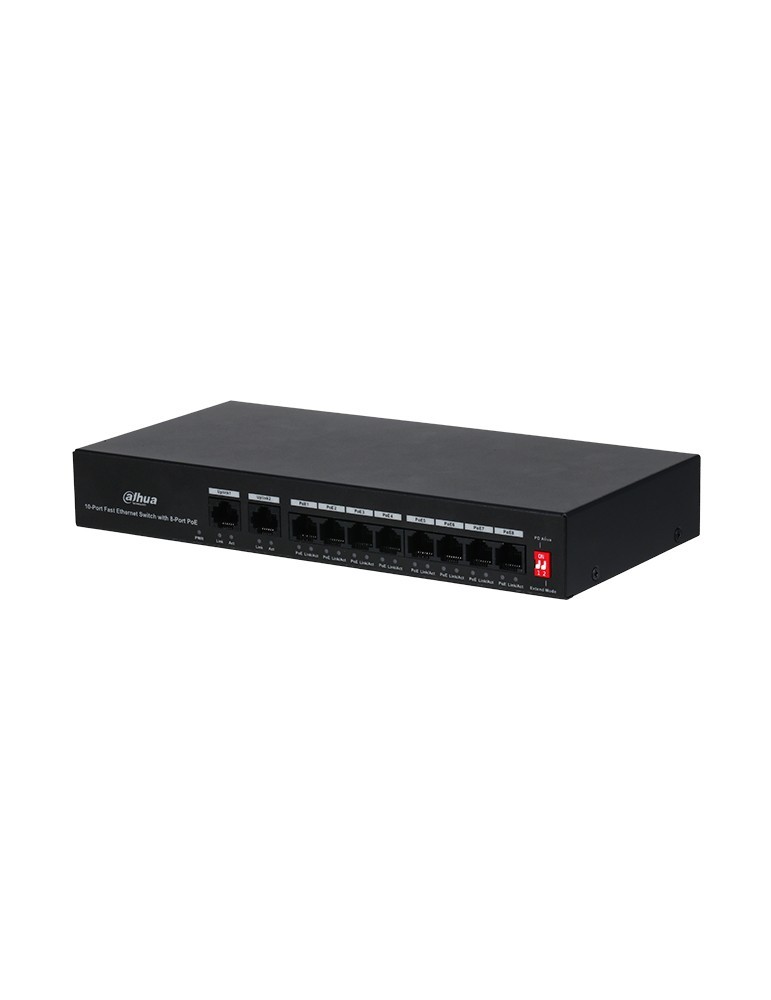

[DH-PFS3010-8ET-65] DAHUA Gigabit Unmanaged Desktop Switch 8 Ports Fast Ethernet 10/100Mbps PoE Transmission 250M

Hardware

Data Transmission Port

8 PoE ports with 10/100 Mbps Base-TX
2 uplink ports with 10/100Mbps Base-TX

Power Supply

AC100–AC240V

Operating Temperature

-10°C to +55°C (-14°F–131°F)

Operating Humidity

10%–90%

Power Consumption

Idling: 1.0W
Full load: 65W

PoE

PoE Budget

Port1-8 ≤30W, whole PoE budget ≤65W

PoE Standard

IEEE802.3af, IEEE802.3at

PoE Pin Assignment

PoE: 1, 2, 4, 5(V+), 3, 6, 7, 8(V-)

Performance

Switching Capacity

2.0 Gbps

Packet Forwarding Rate

1.49 Mpps

MAC Table Size

2 K

Jumbo Frame

2048 byte

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3X

Performance

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 6kV
Differential mode: 4kV

Net Weight

0.76 kg (1.68 lb)

Gross Weight

1.3 kg (2.87 lb)

Product Dimensions
(W × L × H)

242.5 mm × 122.9 mm × 35.0 mm (9.55" × 4.84" × 1.38")

Packaging Dimensions
(W × L × H)

Packing box: 303 mm × 262 mm × 72 mm (11.92" ×10.31" × 2.83")

Protective box: 549 mm × 325 mm × 397 mm (21.61" ×12.80" × 15.63")

Package

10 devices in one package

Certifications

CE: EN60950;
FCC
