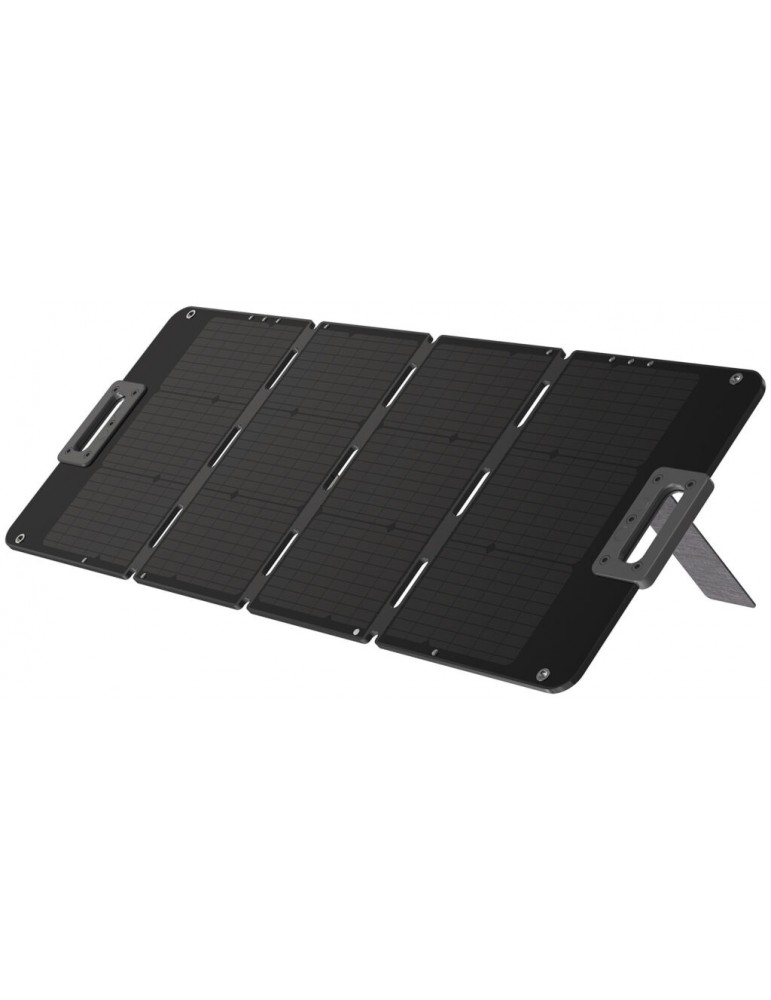

[PSP100] EZVIZ 100W Portable Solar Panel

  • Power 100W
  • Cell efficiency 21-23%
  • Supply voltage 20,6 V
  • 'Power current' 4,85A
  • Product dimensions (folded) 540*395*30mm
  • Product Dimensions (unfolded) 1370*540*5mm
  • Net Weight: (KG) 4,7
CS-PSP100-R100-DS100W
We do not have stock available for this product
EZVIZ
Offer: 247,93 € VAT Excluded
  300,00 € VAT Included (21%)
Quantity
This product is out of stock, we can order it for you quickly, contact us:
Telephone：+34 910 35 36 71

Technical Parameter

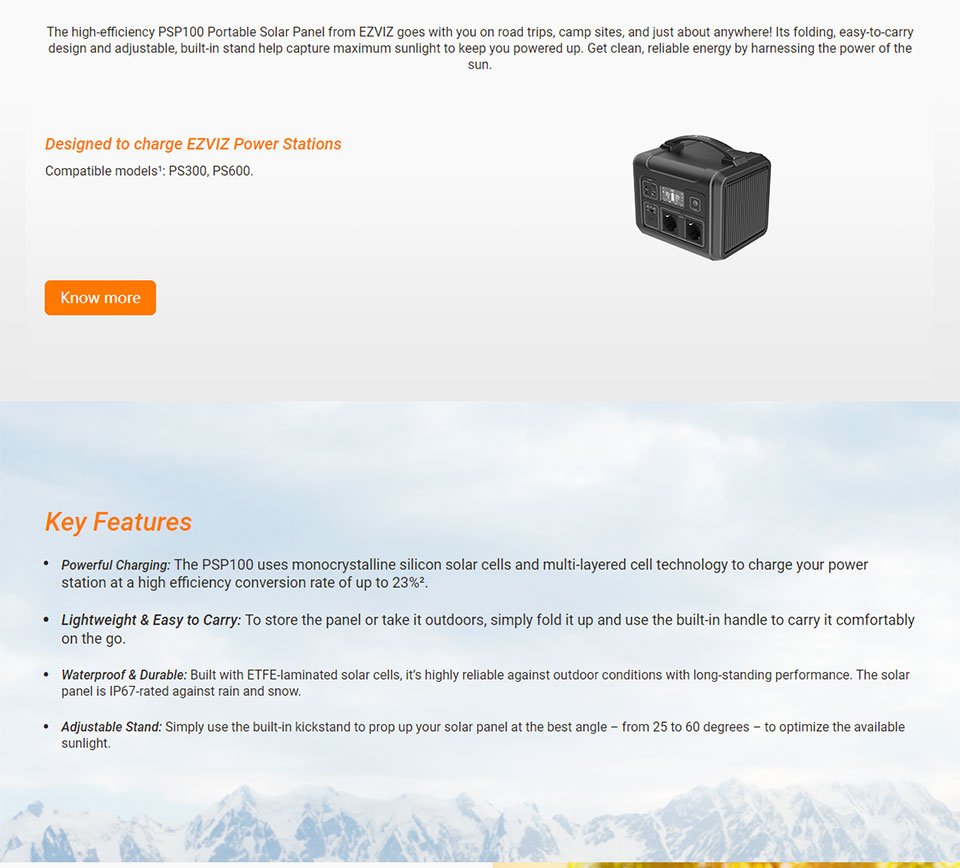

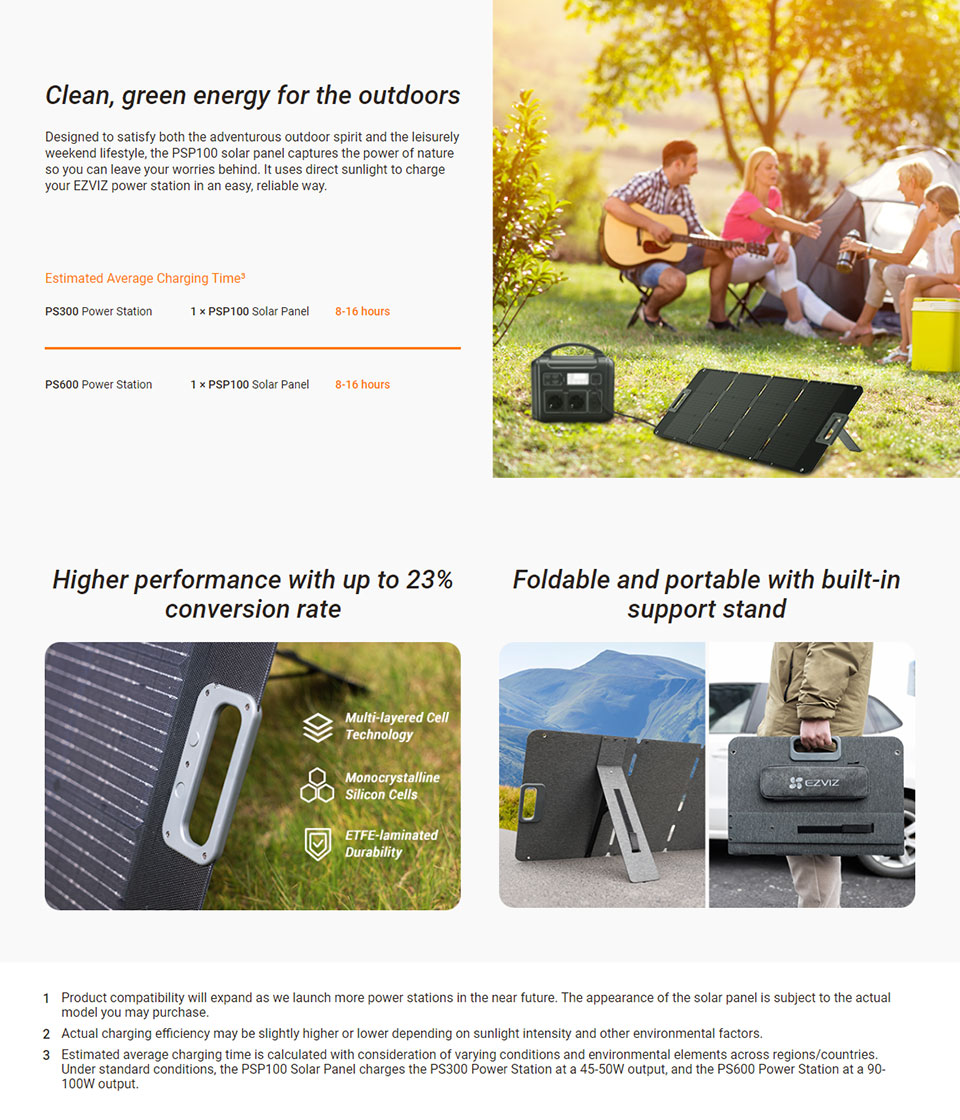

CS-PSP100-R100-DS100W-gb.jpgCS-PSP100-R100-DS100W-gb_02.jpgCS-PSP100-R100-DS100W-gb_03.jpg

Specifications
Model CS-PSP100-R100-DS100W
Power
Open Circuit Voltage 23.8V (-5% ,+10%)
Short Circuit Current 5.33A (-5% ,+10%)
Max. Voltage 19.8V (-5% ,+10%)
Max. Current 5.05A (-5% ,+10%)
Max. Power 100W (-5% ,+10%)
Solar Cell
Efficiency 23%
Type Monocrystalline solar cells
General
Operation Temperature -20°C ~60°C(-4°F~140°F)Humidity 90% or less (non-condensing)
IP Grade IP67
Connector MC4
Cable 16 AWG, 1000 ± 10 mm
Product Dimensions (Folded) 540 × 400 × 64 mm (21.26 × 15.55 × 2.56 inch)
Product Dimensions (Unfolded) 1380 × 540 × 36 mm (54.33 × 21.26 × 1.42 inch)
Packaging Dimensions 600 × 445 × 105 mm (23.63 × 17.52 × 4.13 inch)
Weight (With Package) 6.08 kg (214.5 oz)
Net Weight (Without Bracket) 4.78 kg (168.6 oz)
In the box
In the box - PSP100 Portable Solar Panel
- Quick Start Guide
- Regulatory Information
Certifications
Certifications CE / UKCA / RoHS / WEEE / REACH
