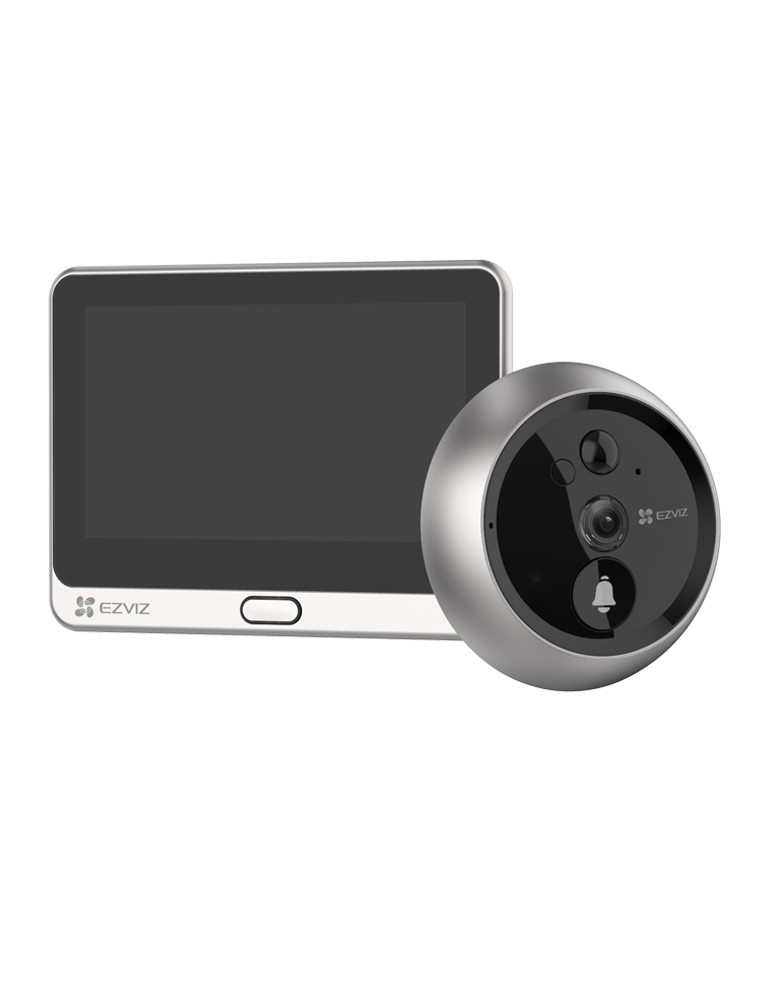

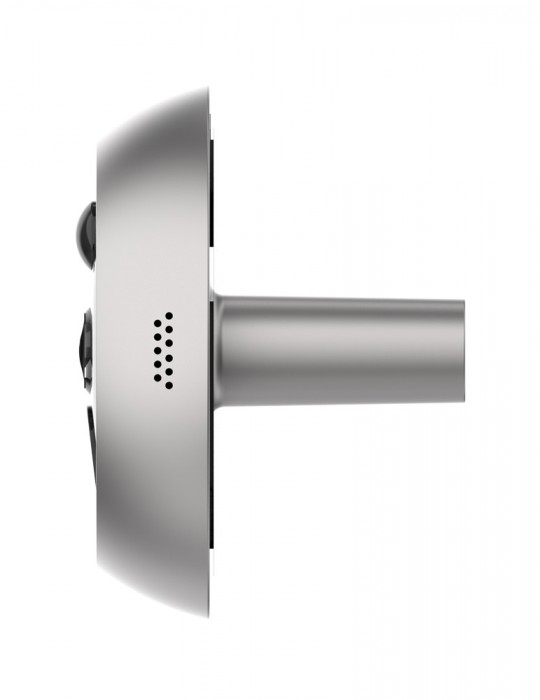

[DP2C] EZVIZ Wire-free Peephole Doorbell, Screen LCD 4.3", Video Call, 1080p, Visual Angle 155°, Motion Detection

[DP2C] EZVIZ Wire-free Peephole Doorbell, Screen LCD 4.3", Video Call, 1080p, Visual Angle 155°, Motion Detection

"1/3" Progressive Scan CMOS,
2.0 mm @ F2.2,
visual angle (diagonal):155°,
ICR infrared filter,Max. 5 m,
1080p / 2MP, 15fps,
PIR angle 110°,
Max. 6 m (20 ft),
MicroSD card slot (max. 256 GB),
Built-in high sensitivity microphone,
Built-in high-power speaker
PIR motion detection,
2.4 GHz ~ 2.4835 GHz，Supports 20 MHz
4.3-inch color screen,
-10°C to 45°C (14°F to 113 °F ),
Humidity 95% or less (non-condensing),
DC5V±10%， Max. 2.2W

Offer: 123,96 € VAT Excluded

149,99 € VAT Included (21%)

Quantity

This product is out of stock, we can order it for you quickly, contact us:
Telephone：+34 910 35 36 71

Specifications
Model	CS-DP2C
Installation Parameters
Supported Hole Diameter	16.5 to 50 mm (0.65 to 1.97 inch)
Supported Door Diameter	35 to 105 mm (1.38 to 4.13 inch)
Camera Parameters
Sensor	1/3" Progressive Scan CMOS
Lens	2.0 mm @ F2.2, visual angle (diagonal):155°
Day/Night Switch	ICR infrared filter
IR Distance	Max. 5m
Max. Resolution	1080p / 2MP
Video Frame Rate	15fps
PIR Detection
Angle	110°
Distance	Max. 6m (20 ft)
Sensitivity	Adjustable
Interface

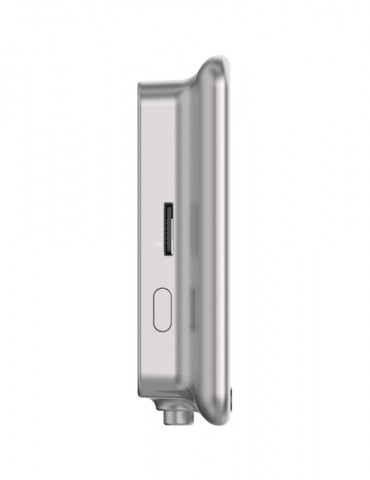

Storage Interface	MicroSD card slot (max. 256 GB)
Audio Input	Built-in high sensitivity microphone
Audio Output	Built-in high-power speaker
Buttons	Doorbell button, power button, Screen wake up button
Network
Face Detection	Does not support
Intelligence Alarm	PIR motion detection
Protocol	EZVIZ Cloud Proprietary Protocol
Video Intercom	Local and remote video intercom
General Function	Cloud video encryption and image encryption
Wireless
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n
Frequency Range	2.4 GHz ~ 2.4835 GHz
Channel Bandwidth	Supports 20 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate	11b: 11Mbps, 11g :54Mbps, 11n :150Mbps
General

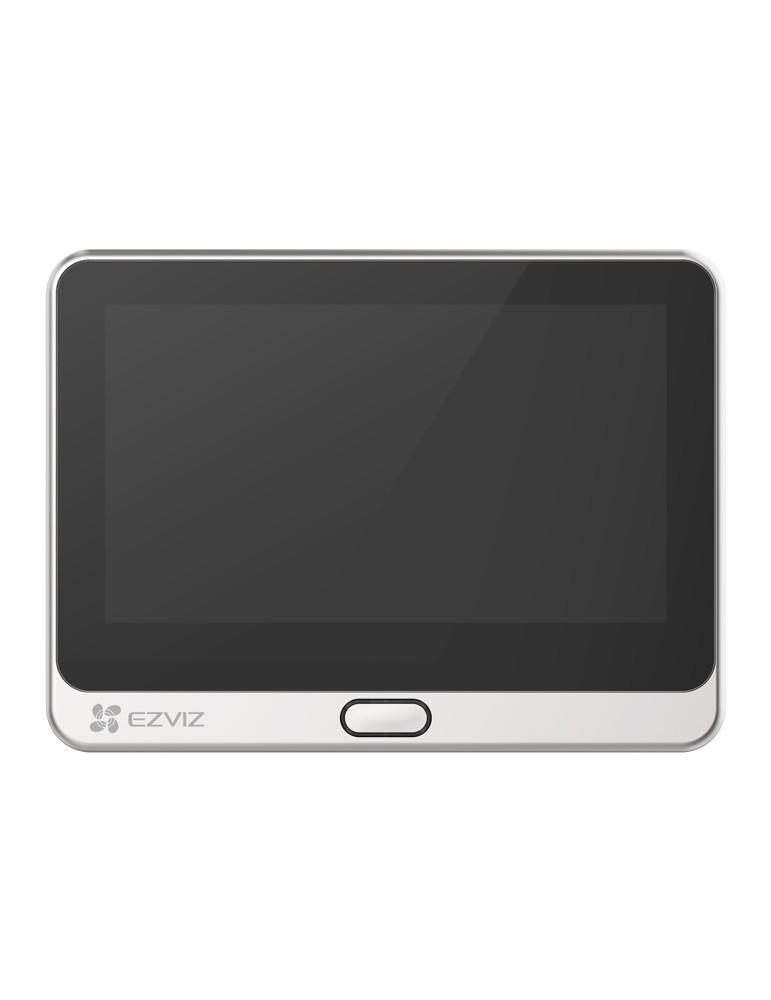

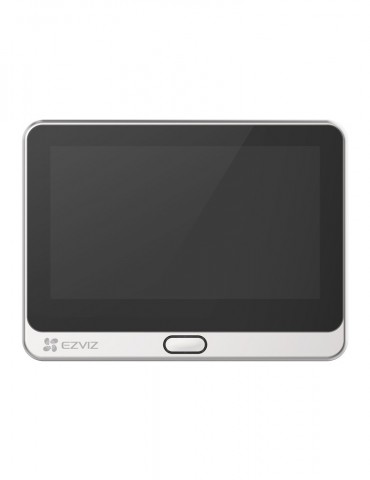

Screen	4.3-inch color screen
Color	Silver
Operating Conditions	-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply	DC 5V (±10%)
Power Consumption	Max. 2.2W
Dimension	Screen and Base: 115.5 x 85.5 x 24.5 mm (4.55 x 3.37 x 0.96 inch)

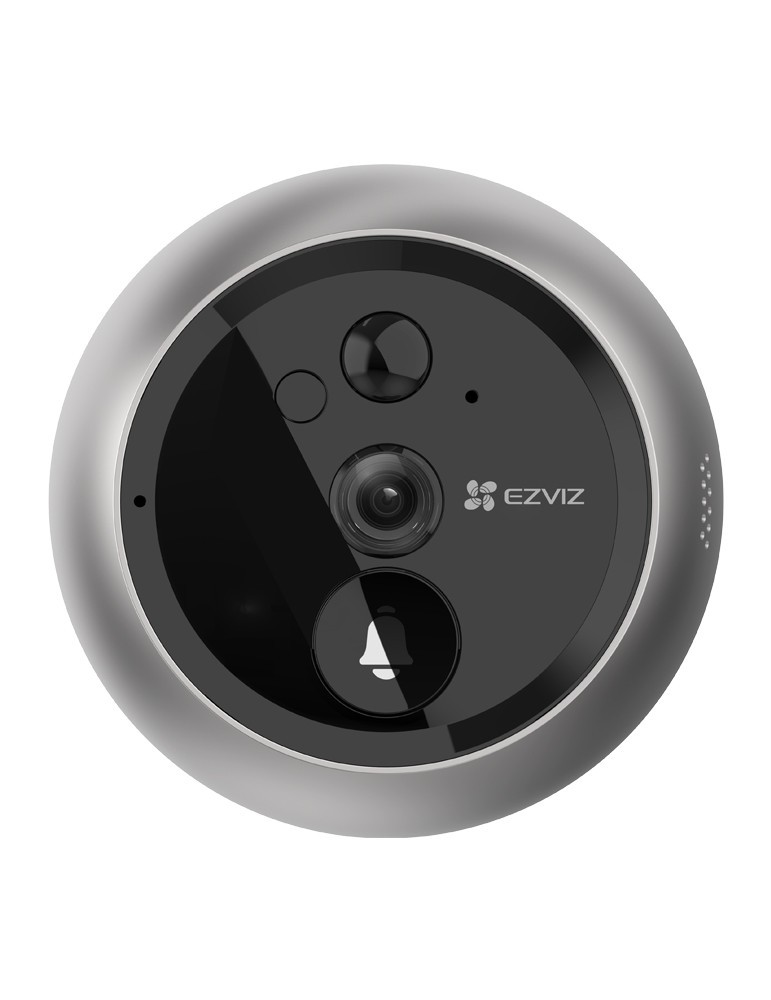

Dimension	Peephole Doorbell: 71 x 71 x 48.3 mm (2.80 x 2.80 x 1.90 inch)
Weight	302 g (10.65 oz)
In the box
In the box	- DP2C Peephole Doorbell
	- Panel
	- Mounting Base
	- Power Cable (1 m / 3.3 ft)
	- Screws × 6
	- Quick Start Guide
Certifications
Certifications	UL / FCC / CE / WEEE / REACH / RoHS

Reference CS-DP2C-A0-6E2WPFBS

Data sheet

Píxel: 2 Mpx
