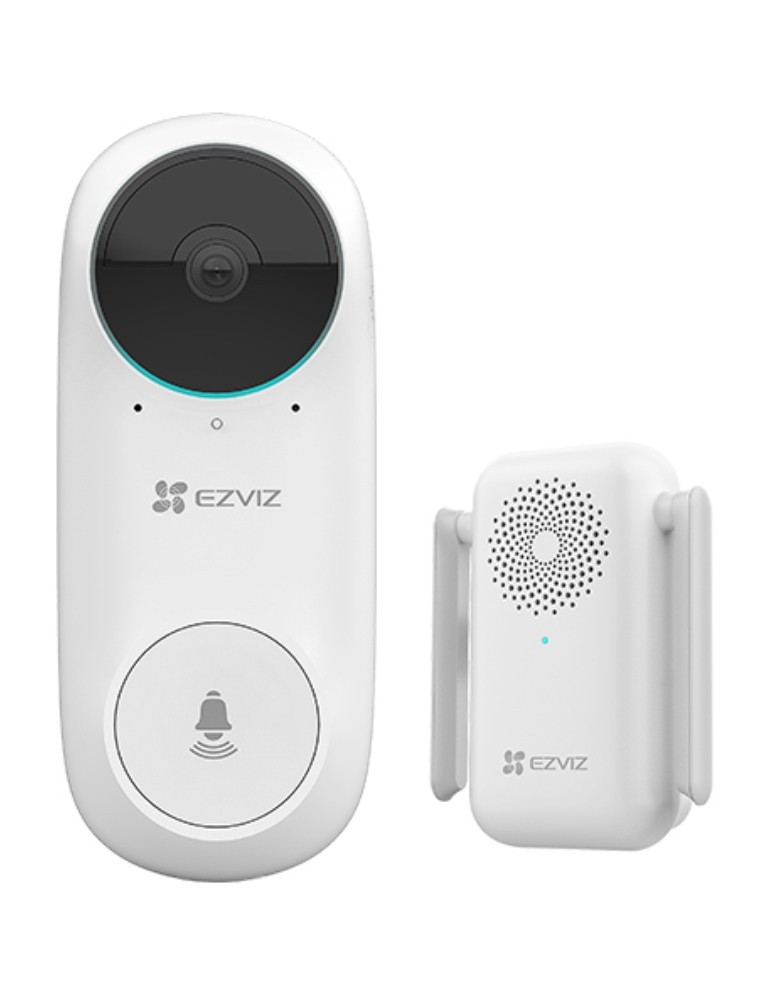

[DB2C Kit] EZVIZ Smart Video Doorbell with Receiver, 1080P, Rechargeable Battery, Tampering Alarm, Motion Detector
[DB2C Kit] EZVIZ Smart Video Doorbell with Receiver, 1080P, Rechargeable Battery, Tampering Alarm, Motion Detector

[DB2C Kit] EZVIZ Smart Video Doorbell with Receiver, 1080P, Rechargeable Battery, Tampering Alarm, Motion Detector

  • Wi-Fi Video Doorbell,
  • 2MP HD Resolution,
  • 2.4Ghz/5GHz Wi-Fi,
  • PIR People Detection,
  • Two-way audio,
  • 256GB,
  • weather proof IP65,
  • Night Vision 5m
CS-DB2C-A0-1E3WPBR
This product is available with a low stock level
EZVIZ
Offer: 107,43 € VAT Excluded
  129,99 € VAT Included (21%)
Quantity

Technical Parameter


Model Parameters
Model CS-DB2C-A0-1E3WPBR
Camera Parameters
Image Sensor 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
Lens 2.2 mm@F2.4, Ultra FOV 160° Vertical
Day & Night IR-cut filter with auto-switching
IR Range Max. 6 m (20 ft)
Video Parameters
Max. Resolution 1536 x 1536 FHD
DNR 2D/3D DNR
Video Compression H.265/H.264
Frame Rate Max: 15fps; Self-Adaptive during network transmission
PIR Sensor
Sensing Angle 100°
Sending Distance Max. 5 m (16.4 ft)
Sensitivity User adjustable (High, Medium and Low Sensitivity)
Interface
Audio Input Built-in high-sensitivity microphone
Audio Output Built-in high-power speaker
Reset button Yes
Network Parameters
Intelligent Alarm PIR Person Detection
Tamper Alarm Sound and light anti-dismantling alarm (support alarm to mobile phone)
Video Intercom Long-distance video two way talk
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Wi-Fi Parameters
Wi-Fi Standard IEEE802.11b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20 MHz
Security 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11Mbps, 11g: 54 Mbps, 11n: 150 Mbps
General
Operation Conditions -10°C to 45°C (14°F to 113°F), Humidity 95% or less (non-condensing)
Ingress Protection Grade No IP Grade
Weight 206 g (0.45 lb)

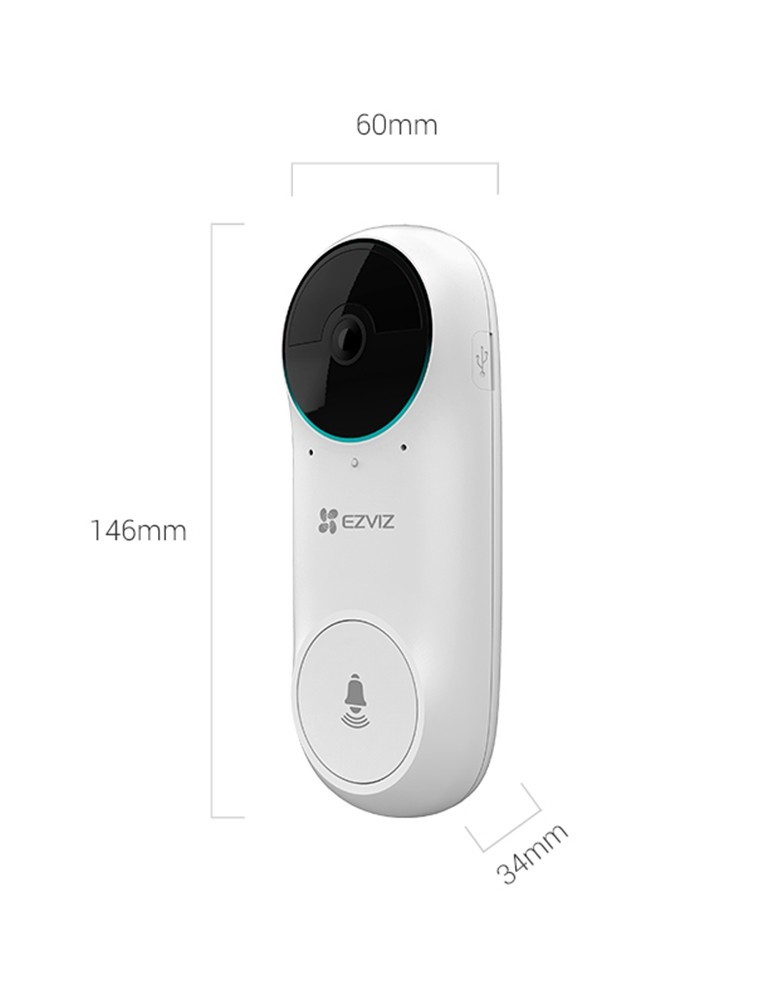

Size 146 mm x 60 mm x 34 mm (5.75” x 2.36” x 1.34”)
Battery Capacity 5200mAh rechargeable lithium battery
Power Supply DC5V±10%
Power Consumption Max.7.5W
Model / Chime

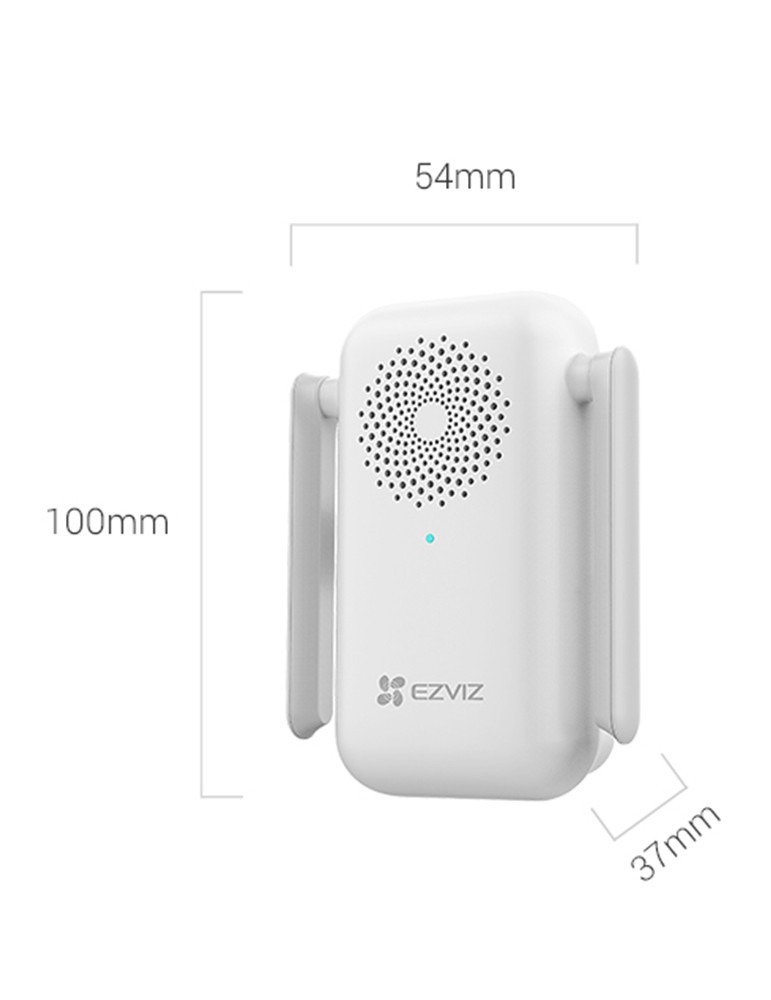

Size 100 x 54 x 37 mm (3.94” x 2.13” x 1.46”)
Power Supply AC 100 ~ 240V
Wi-Fi Standard IEEE802.11b/g/n
Audio Output 65dB within 3 meters
Storage Supports TF card up to 256 G
Weight 120 g (0.26 lb)
In the box:
In the box: Doorbell ; Chime ; Mounting Plate ; Screw Kit ; Foam Sticker ; Drill Template ; Pin ; Power Cable ; Quick Start Guide
Certifications:
Certifications: UL / FCC / CE / WEEE / REACH / RoHS
CS-DB2C-A0-1E3WPBR

Data sheet

Píxel
2 Mpx
