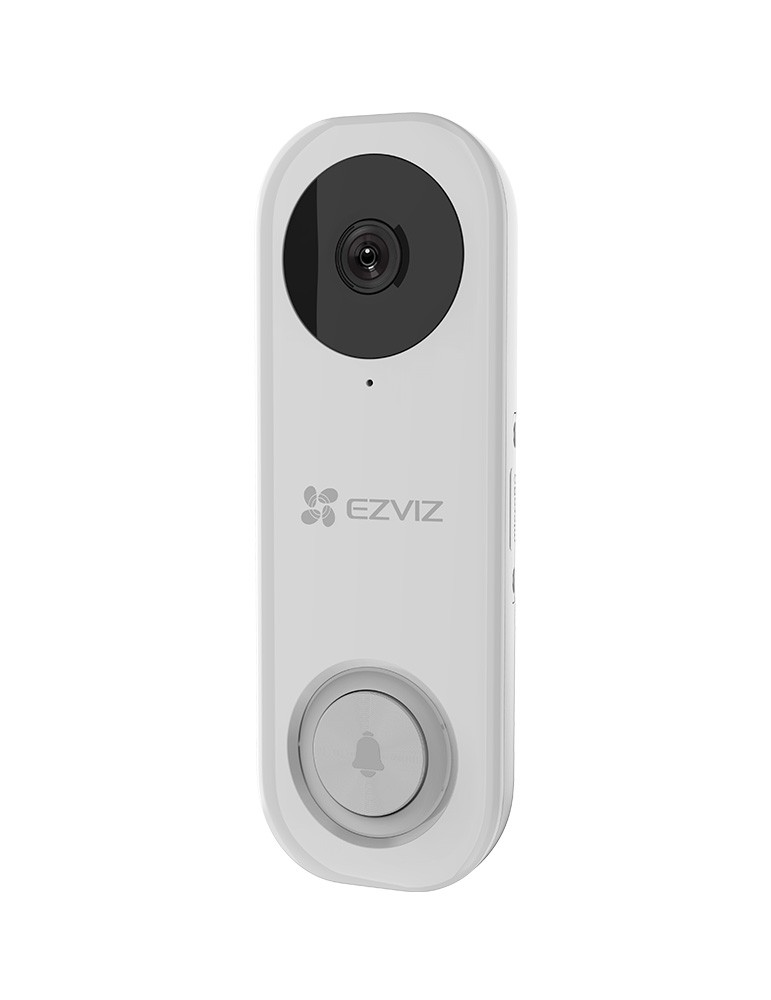

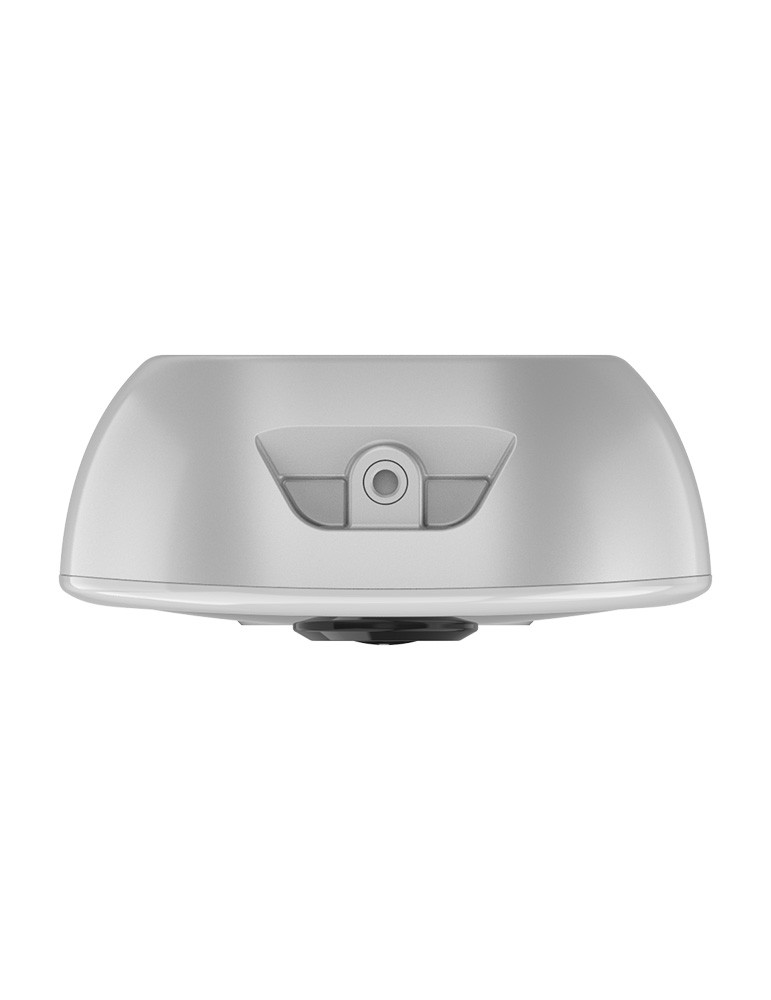

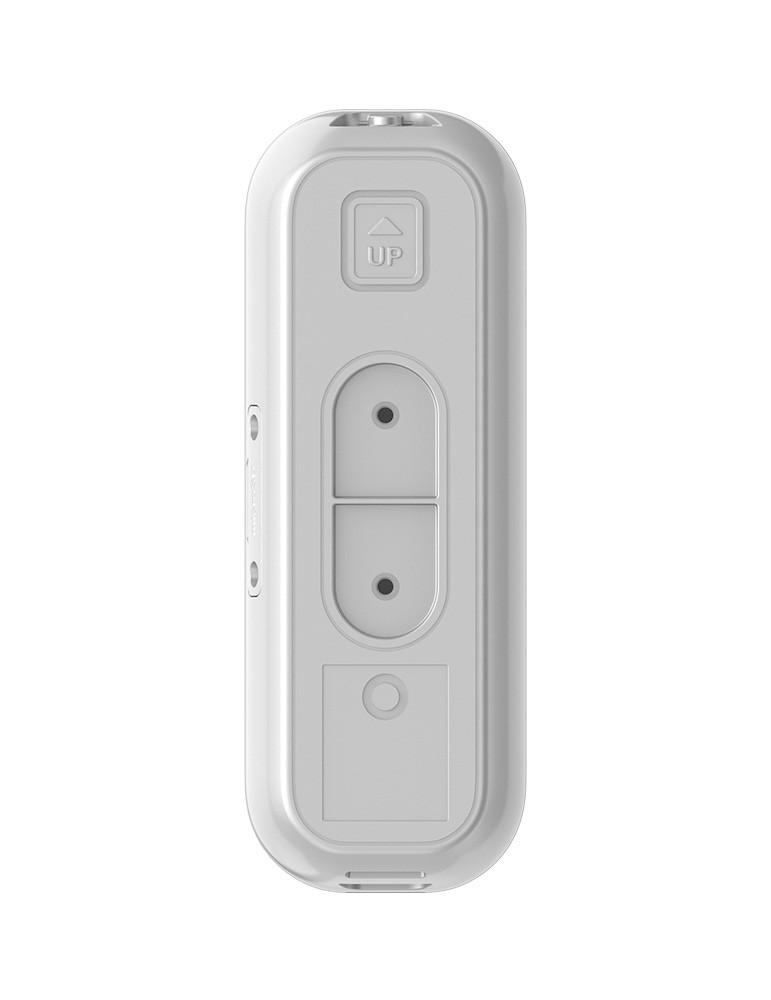

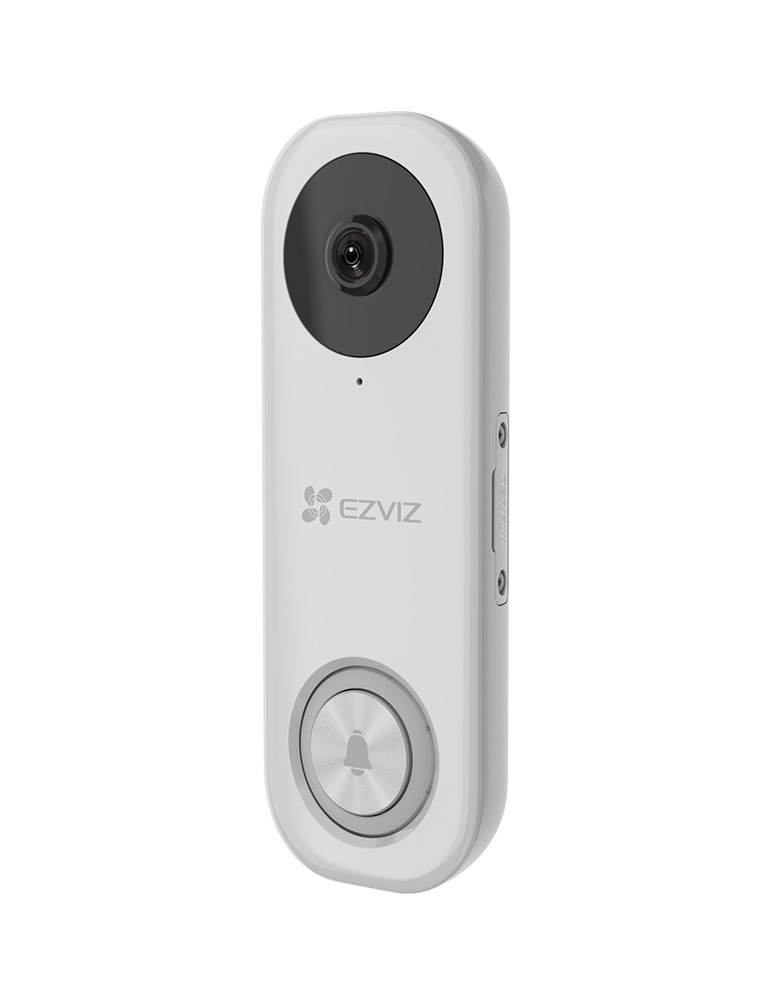

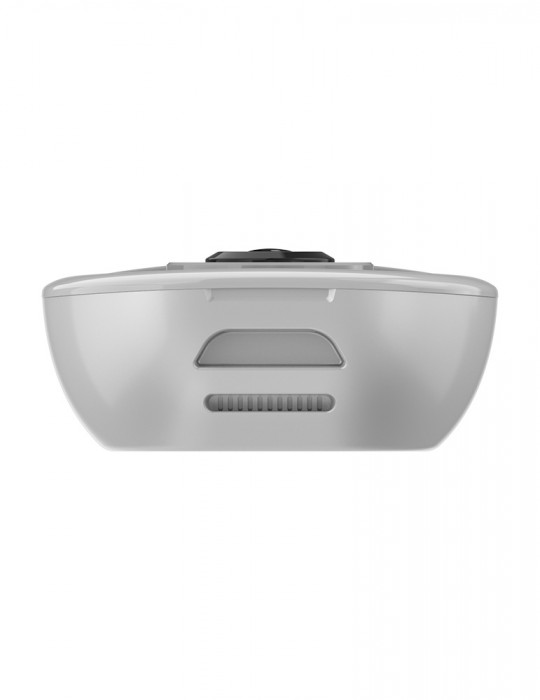

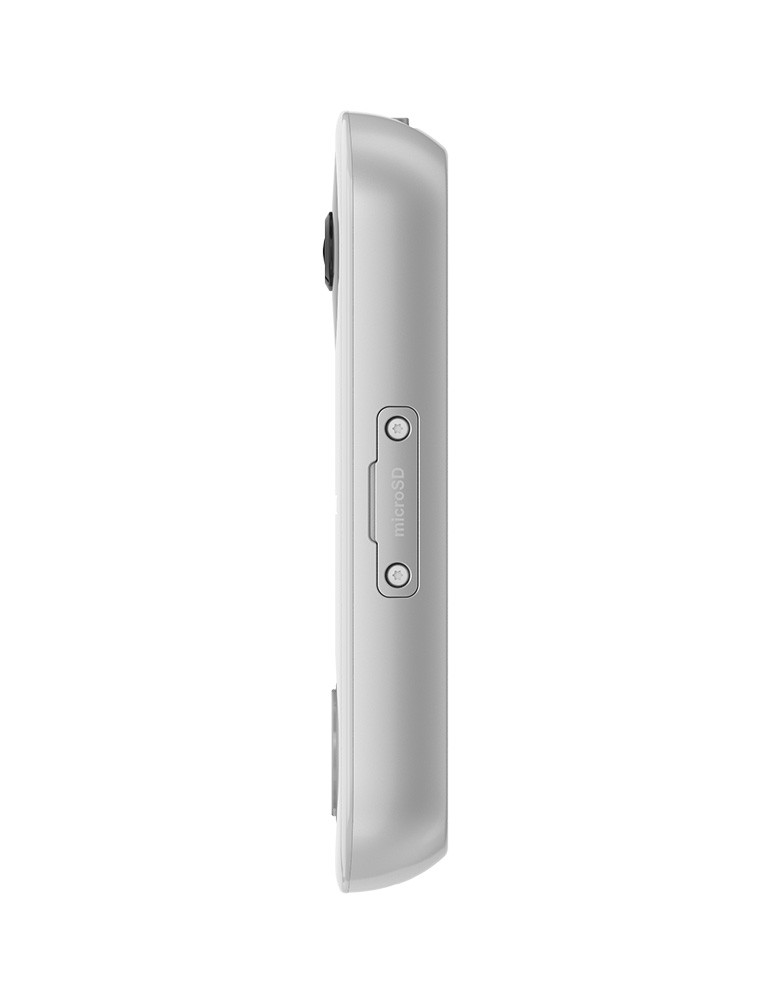

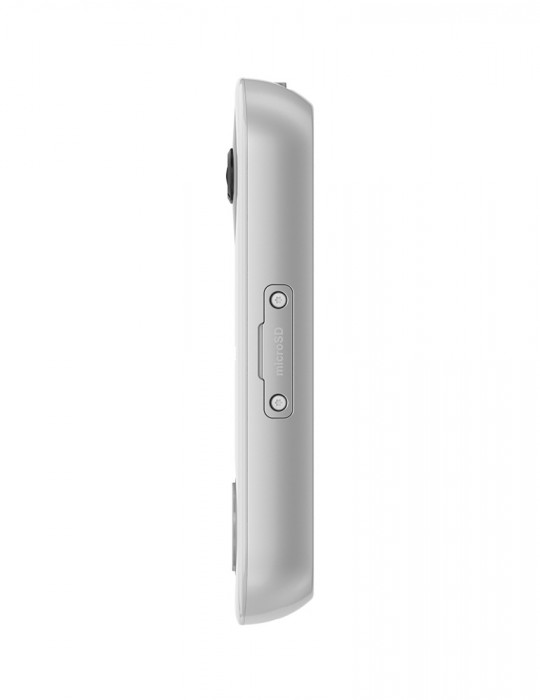

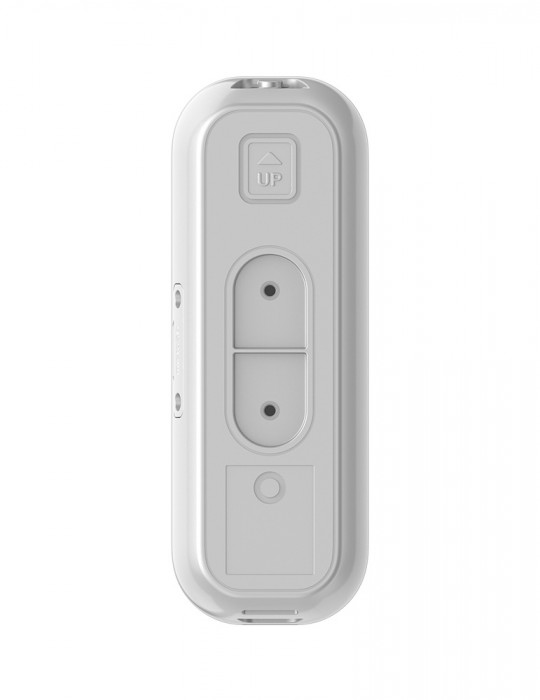

[DB2 PRO 5MP] EZVIZ Smart Video Doorbell with Receiver, 2K, 5200mAh Battery, extend WiFi, Anti-Tamper Alarm, Motion Detector
- 1/2.7" Progressive Scan CMOS (Supports low light sensitivity)
- 2.0 mm @ F2.0
- view angle: 176° (Diagonal)
- IR-cut filter with auto-switching
- 2544 ╳ 1888， DWDR，2D/3D DNR
- H.265 / H.264， Max: 15fps
- Self-Adaptive during network transmission
- Two-way Talk
- Human/vehicle shape smart motion detection
- WiFI 2.4G & 5G
| Specifications | |
|---|---|
| Model | CS-DB1-B0-1J5W2FR |
| Camera Parameters | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.0,view angle: 176° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching |
| Video Parameters | |
| Max. Resolution | 2544 × 1888 |
| DNR | 2D/3D DNR |
| WDR | DWDR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Reset button | Yes |
| Network Parameters | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Functions | |
| Intelligent Alarm | AI-powered human / vehicle shape detection |
| Tamper Alarm | Sound and light anti-dismantling alarm (supports sending alerts to the smartphone) |
| Video Intercom | Long-distance two-way talk |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz & 5 GHz |
| Channel Bandwidth | Supports 20MHz, 40MHz |
| Data Security | 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| General | |
| Operation Conditions | -30°C to 60°C (-4°F to 122°F), Humidity 95% or less (non-condensing) |
| Ingress Protection Grade | IP 65 |
| Weight | Doorbell: 105 g (3.7 oz), With Package: 440 g (15.52 oz) |
| Size | 128.3 × 46.3 × 19.3 mm (5.1 × 1.8 × 0.8 inch) |
| Power Supply | AC 16V~24V |
| Power Consumption | Max. 2W |
| In the box | |
| In the box | - EZVIZ DB1 Pro Doorbell |
| - Mounting Plates (2) | |
| - Mounting Screws (3) | |
| - Plate Foam | |
| - Power Kit | |
| - Drill Bit | |
| - Screwdriver | |
| - Anchors (3) | |
| - Wire connecters (4) | |
| - Security Screw | |
| - Fixing Screws (2) | |
| - Wire Harness | |
| - Fuse Wire | |
| - U-shaped Wires (2) | |
| - Regulatory Information (2) | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | UL / CE / FCC / REACH / WEEE / RoHS / UKCA |
CS-DB1-B0-1J5W2FR
Data sheet
- Píxel
- 5 Mpx
