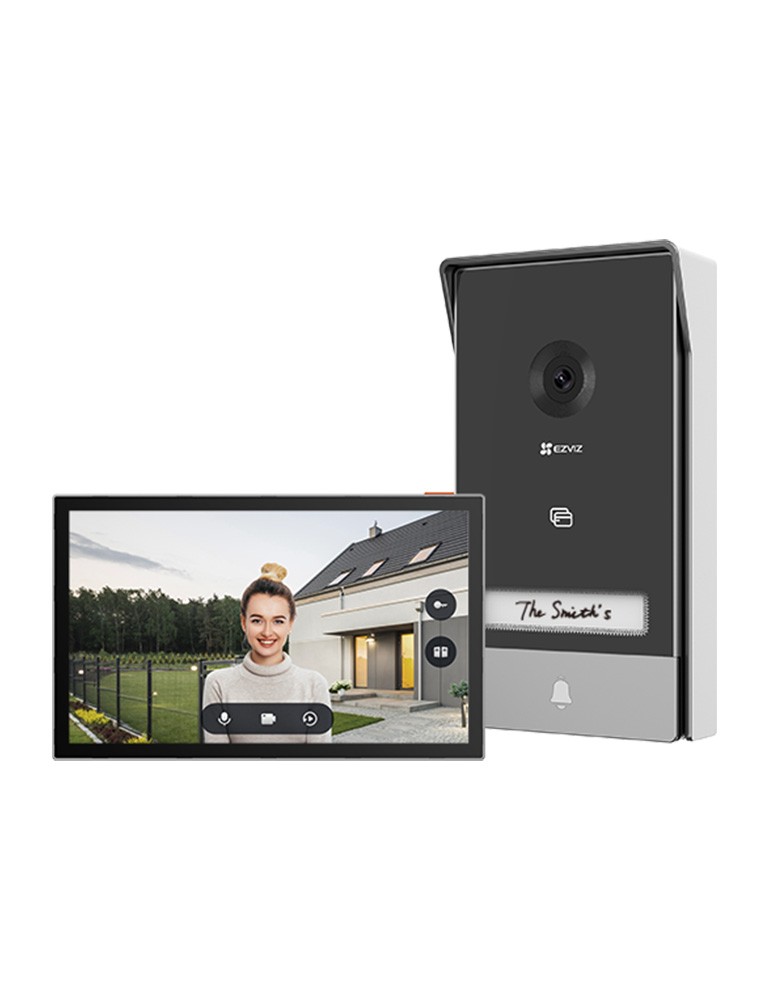

[CS-HP7 3MP] EZVIZ Smart Home Video Doorphone, 7" Touch Screen LCD, Video Call, 2K, Motion Detection
- 2K high definition camera
- Support H.265
- Supports 2.4G / 5G wifi
- Expansion stand for 2 bells + 2 screens
- Built-in Display
- 7inch, Touch Screen
- 2 Wire System
- Three ways to open the door: internal display, RFID tag and EZVIZ app
- Support MicroSD card (up to 512GB)
- Support intelligent humanoid detection
- Tramp detection support
- Support two-way conversation
- Voice changer for privacy protection
- Live view and playback through the EZVIZ app
| Specifications | |
|---|---|
| Model | CS-HP7-R100-1W2TFC |
| Outdoor Doorbell | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 2048 × 1296 |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Connection and Function | |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), digital signal transmission |
| Transmission Distance | Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m |
| Open the door (Gate) | Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric strike plate) | Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual. |
| Door Open Methods | 1.RFID badge unlock (Badges × 3 pcs) 2.App remote unlock 3.Indoor display unlock |
| Outdoor Doorbell Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Yes. The light can be set on or off. |
| Name Card | Three handwritten name cards in total (one already on the intercom panel). The light can be set on or off. |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions | |
| Intelligent Alarm | Smart human motion detection, Lingering Detection |
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| General | |
| Operation Conditions | -30°C to 60°C , Humidity 95% or less (non-condensing) |
| IP Grade | Waterproof, with shield cover |
| Size | 161 × 87 × 20 mm (6.34 × 3.42 × 0.79 inch) |
| Interior Display | |
| Display size | 7” touch screen |
| Resolution | 1024 × 600 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen On / Off Button |
| Terminal | Two wiring ports to connect 1st outdoor doorbell. Two wiring ports to connect 2nd outdoor doorbell. Two wiring ports to connect extra interior screen (not included in the kit) |
| Storage | Supports microSD card up to 512 GB Supports EZVIZ Cloud storage |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Coud Proprietary Protocol |
| Protocol | EZVIZ Connect Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function | |
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video call |
| General | |
| Operation Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Weight | Net weight: 855 g (30.16 oz) With package: 1825 g (64.37 oz) |
| Size | 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) |
| Power Supply | DC 24V / 1.5A power supply, adaptor (100- 240Vac) |
| Power Consumption | 8W, Max. 24W |
| In the box | |
| In the box | - Monitor |
| - Wall Bracket for Monitor | |
| - Power Adapter for Monitor | |
| - Drill Template for Monitor | |
| - Intercom Panel | |
| - Drill Template for Intercom Panel | |
| - Screwdriver | |
| - Badges (×3) | |
| - Screw Kit (×2) | |
| - Name Card (×2) | |
| - Wires and Wire Connectors | |
| - Regulatory Information (×2) | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
CS-HP7
Data sheet
- Píxel
- 3 Mpx
