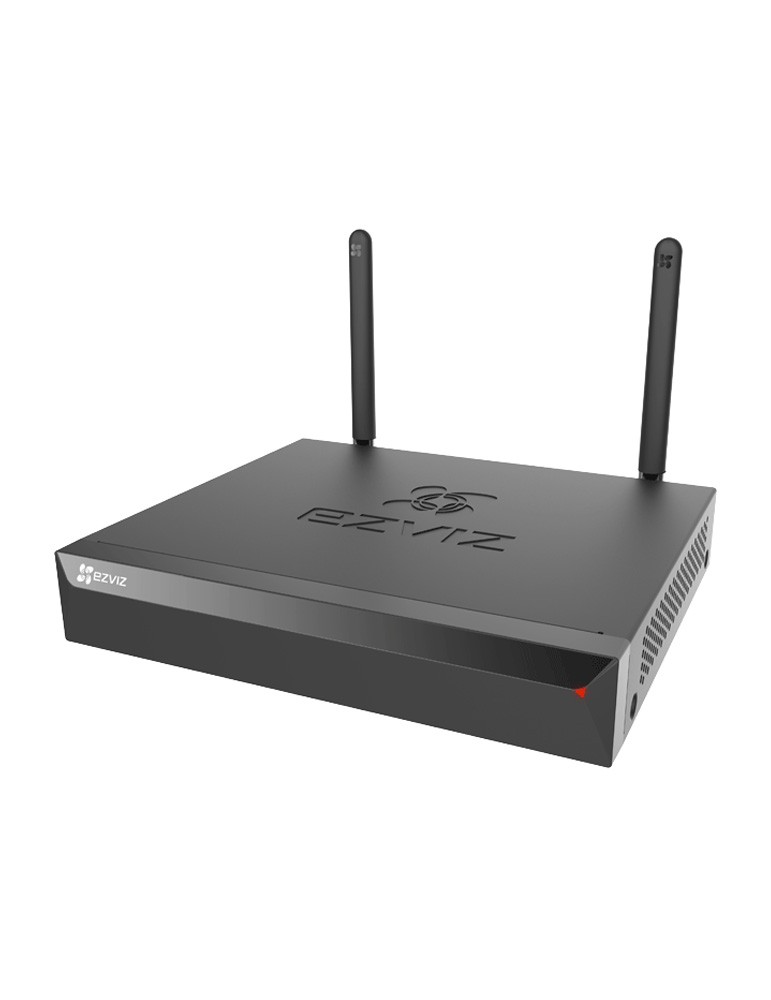

[CS-X5S-4P] EZVIZ WiFi NVR Recorder For IP Cameras 4 CH POE
- Salida HDMI/VGA
- Compatible con cámaras wifi de 5 megapíxeles
- Compatibilidad H.265
- Hasta 8 TB de almacenamiento
| Model Parameters | ||
|---|---|---|
| Modell | X5S-4W,X5S-8W | |
| IP camera access capacity | ||
| Accessibility of wireless IP cameras | 4 x 5MP(X5S-4W) / 8 x 5MP(X5S-8W) | |
| Cable IP camera access capacity | 4 x 5MP(X5S-4W) / 8 x 5MP(X5S-8W) | |
| network parameters | ||
| antenna number | 2 | |
| Maximum wireless range | 100m | |
| Radio frequency | 2.4GHz | |
| ethernet port | one 10/100M adaptive Ethernet port | |
| Required access bandwidth | 50Mbps /100Mbps | |
| Video output | ||
| VGA | 1 channel (identical to HDMI output) resolution up to: 1920 x 1080/60 Hz | |
| HDMI | 1 channel resolution up to: 2560 x 1440/30 Hz | |
| Audio/video codec | ||
| recording resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF | |
| video compression | H.265, H.264 | |
| playback decoding | Compatible with 4 x 5 MP (X5S-4W) / Compatible with 8 x 5 MP (X5S-8W) | |
| Video Recording Management | ||
| video recording mode | Manual video recording; Motion detection recording; Scheduled video recording; Triggered event recording | |
| video recording mode | Hard drive backup, internet application backup | |
| play mode | instant playback; normal playback; Event playback; Label reproduction; Event record playback | |
| open protocol | ||
| Open protocol compliant | HIKVISION ONVIF(V2.5) | |
| Hard Disk Drive (HDD) | ||
| interface type | One integrated SATA port | |
| Ability | Compatible with 3.5-inch hard drives from 1TB to 8TB | |
| external connector | ||
| Audio output | not supported | |
| audio input | not supported | |
| Hard reset | Compatible | |
| USB 2.0 port | 1 | |
| Dimensions (mm) | ||
| product dimensions | 235 x 270 x 44.5mm | |
| Packaging dimensions | 387 x 362 x 75mm | |
| Weight | ||
| Net weight | <=900g | |
CS-X5S-4P
Data sheet
- Material
- Metal
- Discs
- 1
- Video Inputs
- 4
- POE Ports
- 4
