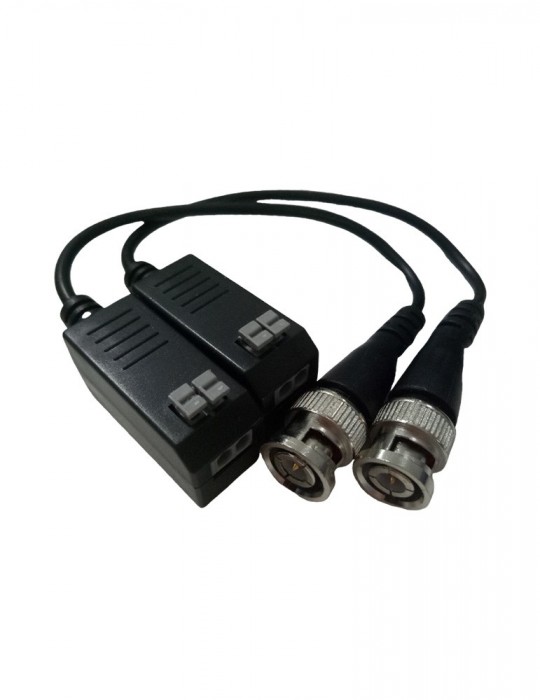

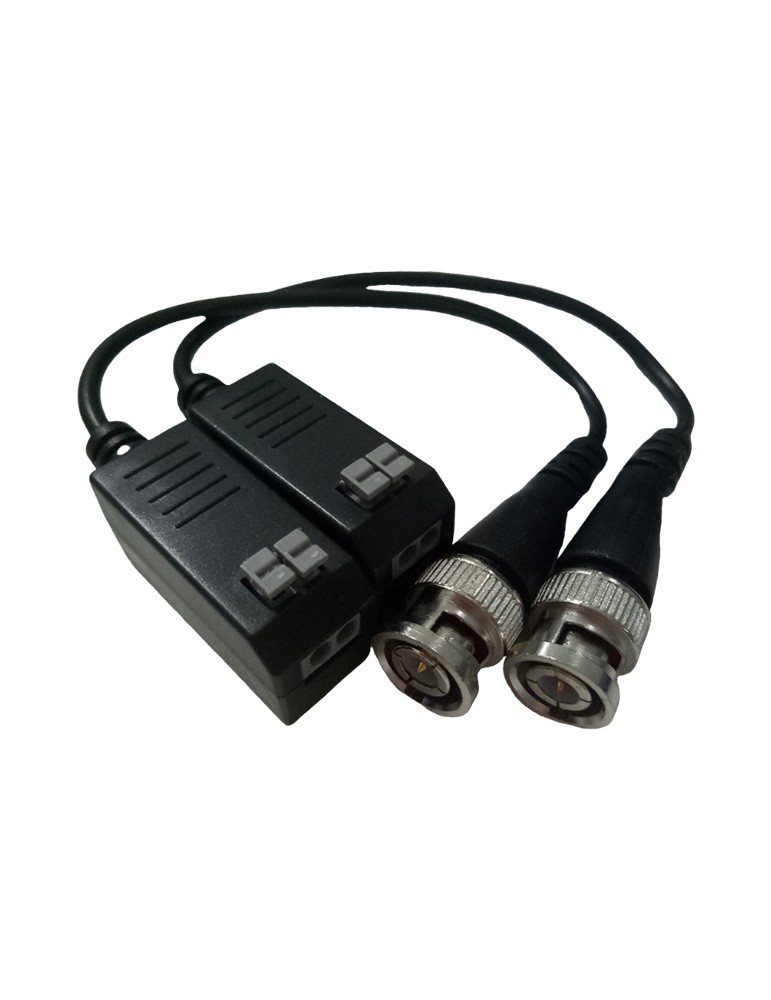

[DS-1H18S/E] HIKVISION Hiwatch Video Balun DS-1H18S/E

[DS-1H18S/E] HIKVISION Hiwatch Video Balun DS-1H18S/E

  • Transmits TVI signal via UTP cable
  • No power required, and only simplified project wiring needed
  • Plug and play, real-time transmission of high quality, stable CCTV HD video signal
  • Compatible with HDTVI/HDCVI/AHD
  • Transmission distance (over Cat 5E/6): HDTVI/HDCVI/AHD 720P/300m (max)
  • 1080p/250m (max)
  • 3 MP/4 MP/5 MP: 200m (max)
DS-1H18S/E
This product is available with a high level of stock
HIKVISION
Offer: 4,13 € VAT Excluded
  5,00 € VAT Included (21%)
Quantity

  • 1H18SE
  • Transmission Signal1 channel
  • Transmission DistanceHDTVI/HDCVI/AHD 720P/300m(max); 1080P/250m(max); 3MP/4MP/5MP:200m(max)
  • Category TypeUTP CAT 5E/6
  • Coaxial Video ConnectorBNC-M
  • Twisted-Pair Video ConnectorPush-terminal
  • Compatible FormatHDTVI/HDCVI/AHD
  • Resolution720P/1080P/3MP/4MP/5MP
  • Ant-Interference＞60db
  • ESD1a contact discharge electricity level3; 1b air discharge electricity level3; Per:IEC61000-4-2
  • Coaxial Cable Connector2KV(common-code) Per:IEC61000-4-5
  • UTP Cable Connector2KV(different-code),2KV(common-code),Per:IEC61000-4-5
  • BNC Male75 ohms
  • UTP Cable100 ohms
  • ShellABS
  • ColorBlack
  • Dimensions(L×W×H)39×19×17mm (1.535×0.748×0.669 inch)
  • Weight38.6g
  • MTBF＞10000 h
  • Operating Temperature-10~55℃
  • Storage Temperature-20~70℃
  • Humidity0-95%（non-condensing)
