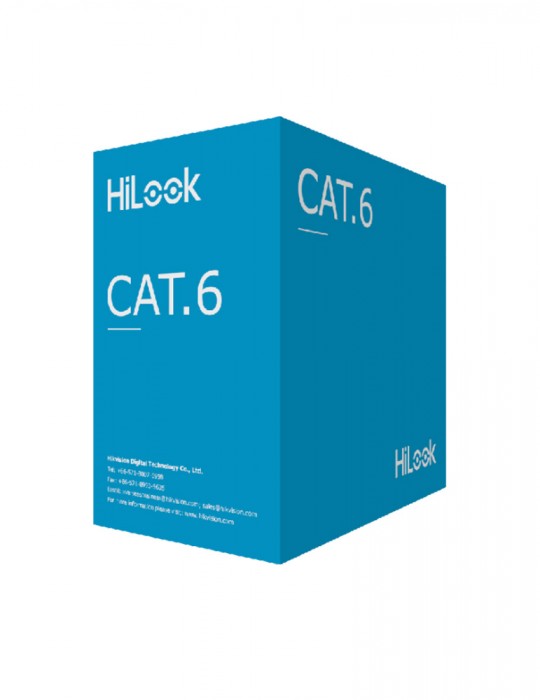

[NC-6AU-W] Hikvision CAT6 UTP Network Cable of 305 Meters
- Full diameter 305 m CAT6 network cable;
- Solid copper core with white sheath;
- Core diameter: 1.05 mm;
- Transmission distance up to 85 meters;
- Quality varified by Fluke test.
- Conductor
- MaterialCCA（Copper content：27%）
- Nom.O.D.(mm)0.585
- NC-6AU-W
- Core Color
1 Blue & White/ Bluet2 Orange & White/ Orange
3 Green & White/ Greent4 Brown & White/ Brown
- PackingCarton
- Carton dimension41x41x24cm
- Packing length(305±1.5)m
- Rip-cordYes
- Sheath Physical Properties
Before Aging Tensile Strength (Mpa) ≥13.5
Elongation(%) ≥150
Aging Period(℃×hrs) 100℃×24h×7d
After Aging
Tensile Strength(Mpa) ≥12.5, variance ratio:±25%
Elongation(%) ≥125, variance ratio:±20%
Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
- Electrical Characteristics (21℃)
1.0-100.0MHz Impedance(Ω) 100±15
100 - 250MHz Impedance(Ω) 100±25
1.0-100.0MHz Delay Shew (ns/100m) ≤45
DC ResistanceΩ/100m) max 12
DC Conductor Resistance Unbalance(%) max 2
- Insulation
- MaterialSolid HDPE
- Diameter1.05±0.05mm
- Sheath
- Thickness0.50±0.05 mm
- External O.D.6.0±0.30 mm
- SurfaceClean, Frap, Satiation
- MaterialFR-PVC(complies RoHS)
- ColorWhite RAL9003
- Surface Printing
- Letter height2.5±0.2mm
- ColorBlack
- Print error & Space≤±0.5%，1m
