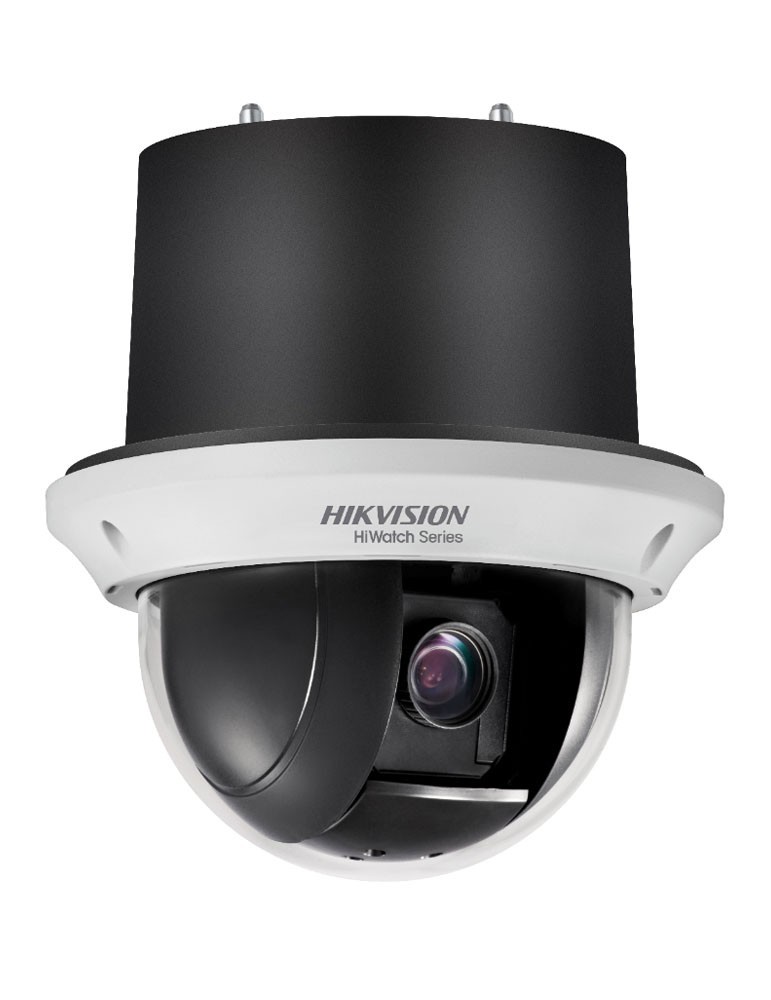

[HWP-T4215-D3(D)] HIKVISION Hiwatch Turbo PTZ Dome IP Camera 2MP
- 1/2.8" HD progressive scan CMOS
- 1920 × 1080 resolution
- 15× optical zoom
- 120 dB true WDR (Wide Dynamic Range)
- 3D intelligent positioning
- Switchable TVI/AHD/CVI/CVBS video output
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps @(1920 × 1080) 60Hz: 30fps @(1920 × 1080) |
| Min. illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) |
| White Balance | Auto/Hauto/Manual/ATW/Indoor/Outdoor |
| AGC | Auto/Manual |
| DNR | 3D DNR |
| WDR | ≥ 120 dB |
| Shutter Time | PAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s |
| Day & Night | IR cut filter |
| Privacy Mask | 8 programmable privacy masks |
| Lens | |
| Focus Mode | Auto/Semiauto/Manual |
| Focal Length | 5 mm to 75 mm, 15x Optical |
| Aperture Range | F 1.6 to F 3.5 |
| Angle of View | 53.8° to 4.0° (wide to tele) |
| Min. Working Distance | 10 mm to 1500 mm (wide to tele) |
| Zoom Speed | Zoom Speed Approx. 2.4 s (optical, wide to tele) |
| Pan and Tilt | |
| Range | Pan: 360° endless; Tilt: 5° to 90° (auto flip) |
| Speed | Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| Preset Freezing | Support |
| Scheduled Task | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| RS-485 Interface | Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocols |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| General | |
| Power | 12 VDC Max. 12 W |
| Working Temperature | -10° C to 50° C (14° F to 122° F) |
| Working Humidity | 90% or less |
| Protection Level | TVS 4,000 V lightning protection, surge protection, and voltage transient protection |
| Mounting | Various mounting modes optional |
| Dimensions | Ø 165 mm × 168 mm (Ø 6.5" × 6.6") |
| Weight (approx.) | 2 kg (4.41 Ib.) |
HWP-T4215-D3(D)
Data sheet
- Píxel
- 2 Mpx
- Material
- Metal
- Optical Zoom
- 15x
