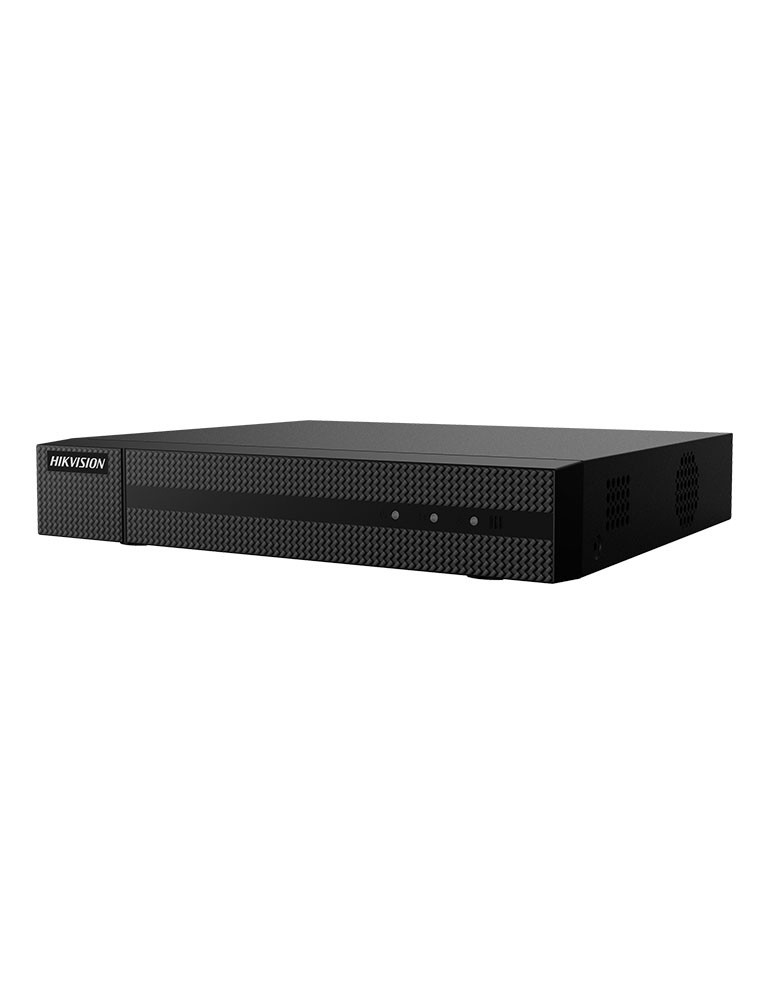

[HWD-7216MH-G2(S)] HIKVISION Video Recorder Turbo HD DVR HiWatch HWD-7200MH 32CH
- Output resolution up to:HDMI(4K/30Hz),VGA(1080P/60Hz)
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 16-ch Analog Video input(up to 8 MP)
- Up to 32-ch IP camera input (up to 8 MP)
- Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
- 2 SATA interface,Up to 10TB capacity for each disk
- video recorder x1
- sata power cable x1
- Handbook x4
- Screws for HDD x8
- sata data cable x2
- AC/DC adapter x1
- power cord x1
- Mouse x1
| Video/Audio input | |
| Video compression | H.265+/H.265/H.264+/H.264 |
| Analog video input | 8-ch |
| HDTVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| IP video input | 4-ch |
| Audio compression | G.711u |
| Video/Audio output | |
| HDMI/VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | 8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | 8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream Frame Rate | WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video bit rate | 32 Kbps to 10 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Network management | |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| Hard disk | |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 8 TB capacity for each disk |
| External interface | |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
| Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 20 W |
| Working temperature | -10 ºC to +55 ºC (+14 ºF to +131 ºF) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without HDD) | ≤1 kg (2.2 lb) |
HWD-7216MH-G2(S)
Data sheet
