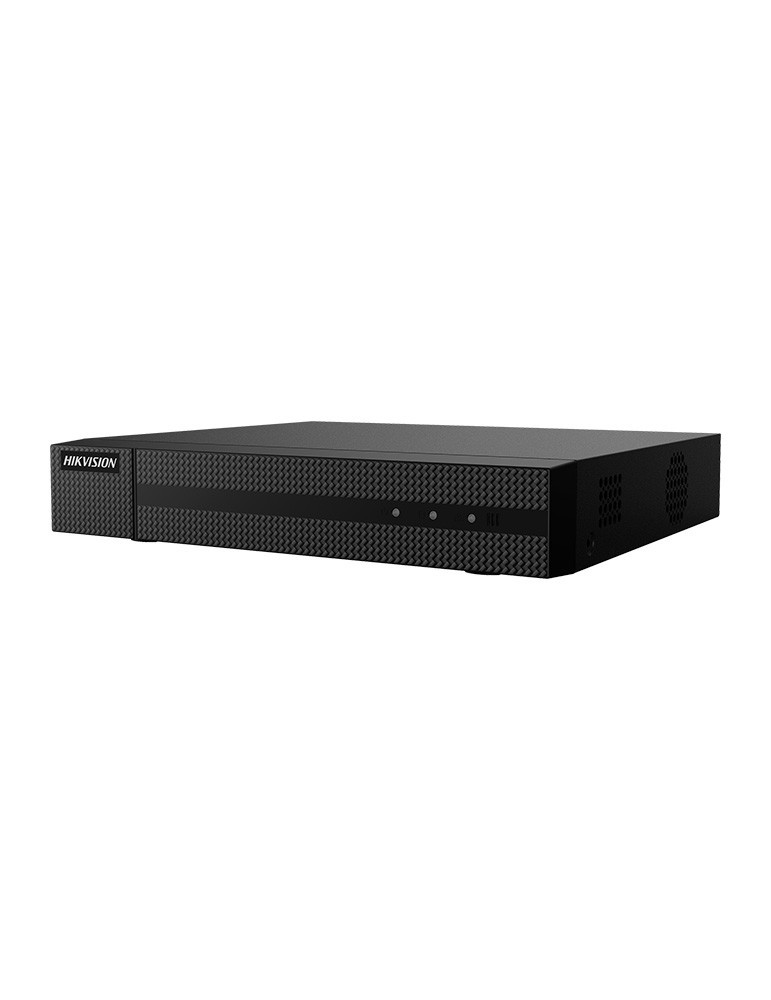

[HWD-5108MH(S)] HIKVISION Video Recorder HD DVR 5N1 8 CH
- 8 Turbo HD/AHD/Analog interface input
- 8-ch video&1-ch audio input
- 2-ch IP video input
- HDMI & VGA Output
- 1 SATA interface
- HD1080P Lite: 25(P)/30(N) fps/ch, 260 1U case
- video recorder x1
- sata power cable x1
- Handbook x4
- Screws for HDD x4
- sata data cable x1
- AC/DC adapter x1
- Mouse x1
| Video/Audio input | |
| Video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog video input | 8-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Audio compression | G.711u |
| Audio input | 1-ch RCA (2.0 Vp-p, 1 KΩ) 8-ch via coaxial cable |
| Video/Audio output | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output |
| Encoding resolution | When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps; For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@15 fps |
| Sub-stream Frame Rate | CIF/QVGA@25 fps (P)/30 fps (N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Network management | |
| Remote connections | 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 4 TB capacity for each disk |
| External interface | |
| Two-way audio input | Reuse the first audio input |
| Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC, 1.5 A |
| Consumption (without HDD) | ≤ 17 W |
| Working temperature | -10 °C to 55 °C (14 °F to +31 °F) |
| Working humidity | 10% to 90% |
| Dimensions (W × D × H) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without HDD) | ≤ 1 kg (2.2 lb) |
HWD-5108MH(S)
Data sheet
- Material
- Metal
- Discs
- 1
- Video Inputs
- 8
