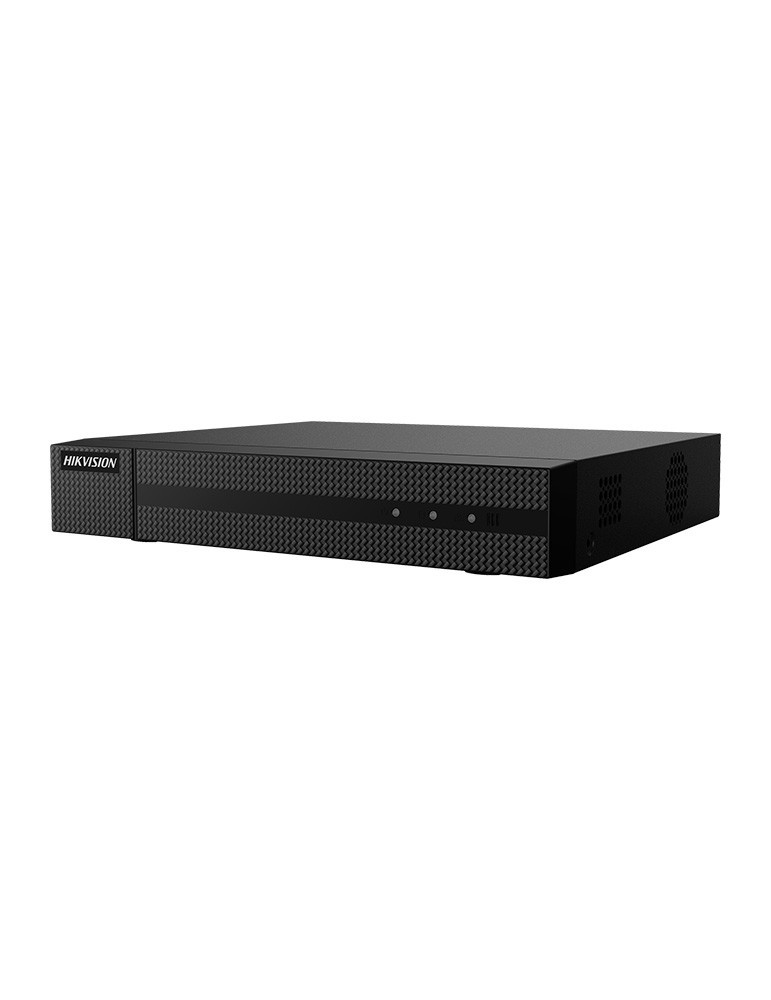

[HWD-6104MH-G3(S)] HIKVISION Video Recorder Turbo HD DVR 5N1 HiWatch HWD-6100M 4CH H265Pro+ HDTVI/AHD/CVI/CVBS/IP 4MP 1080P

[HWD-6104MH-G3(S)] HIKVISION Video Recorder Turbo HD DVR 5N1 HiWatch HWD-6100M 4CH

  • 4 entradas de interfaces autoadaptativas HDTVI/CVI/AHD/CVBS,
  • Entrada de audio y video coaxial HDTVI de 4 canales,
  • Entrada de audio local de 1 canal,
  • Entrada de video IP de 2 canales (hasta 6 canales IP, hasta 6 MP),
  • 1 interfaz SATA, 4 MP lite a 15 fps,
  • Canal 1: 3 MP a 15 fps,
  • CH 2-4: 1920×1080P: 15 fps/canal,
  • Caja 260 1U
HWD-6104MH-G3(S)
This product is available with a high level of stock
HIKVISION
Offer: 76,86 € VAT Excluded
  93,00 € VAT Included (21%)
Quantity

  • Video recorder x1
  • SATA power cable x1
  • Handbook x4
  • Screws for HDD x4
  • SATA data cable x1
  • AC/DC adapter x1
  • Mouse x1
Video/Audio input
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input 4-ch
HDTVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input Support
IP video input 2-ch (up to 6-ch)
Audio compression G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Video/Audio output
HDMI/VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution When 4 MP Lite mode not enabled: 4 MP/4 MP Lite/1080p/720p/WD1/4CIF/VGA/CIF;
When 4 MP Lite mode enabled: 4 MP lite/1080p lite/720p lite/WD1/4CIF/VGA/CIF
When 1080p Lite mode not enabled: 4 MP/1080p/720p/WD1/4CIF/VGA/CIF ;
When 1080p Lite mode enabled: 4 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
Main stream Frame rate For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 4 MP Lite mode not enable: For 4 MP stream access: 4 MP@8fps; 4 MP lite/1080p/720p/WD1/4CIF/VGA/CIF@15fps (N)
When 4MP Lite mode enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode not enabled: For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled: For 1080p stream access:1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream Frame Rate WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch
Network management
Remote connections 32
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA Interface 1 SATA interface
Hard Disk Capacity Up to 10 TB capacity for each disk
External interface
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
USB interface Rear panel: 2 × USB 2.0
General
Power supply 12 VDC, 1.5 A
Consumption (without HDD) ≤ 8 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Weight (without HDD) ≤ 0.8 kg (1.8 lb)
HWD-6104MH-G3(S)

Data sheet

Material
Metal
Discs
1
Video Inputs
4
