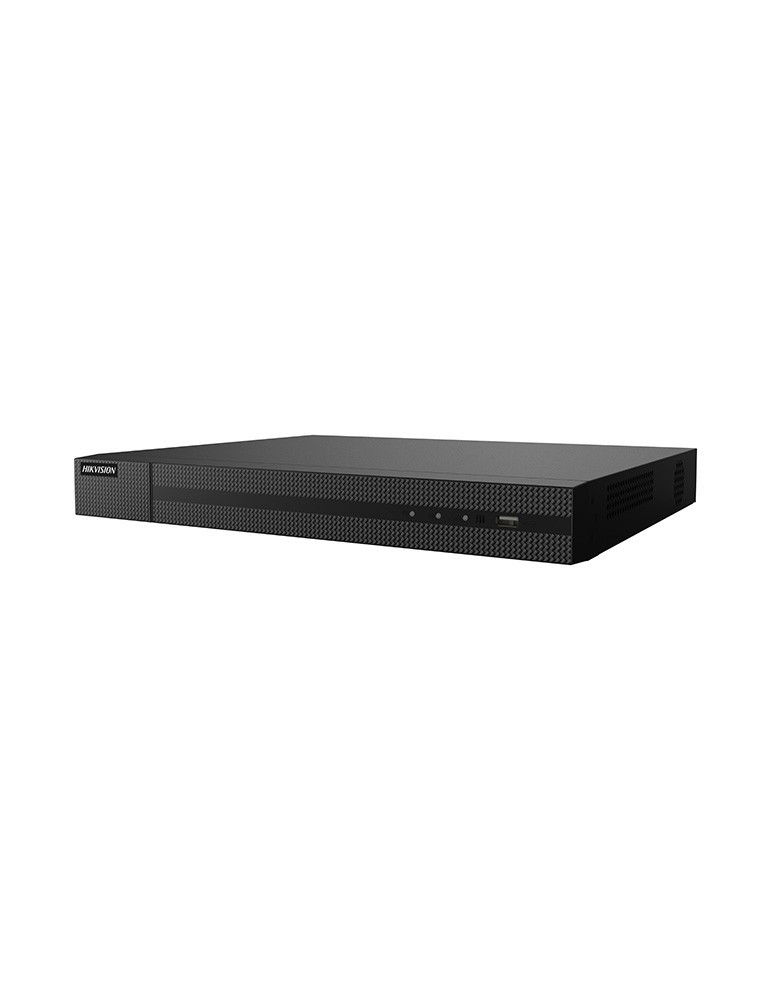

[HWD-6232MH-G2] HIKVISION Video Recorder Turbo HiWatch

[HWD-6232MH-G2] HIKVISION Video Recorder Turbo HiWatch

  • Output resolution up to:HDMI(4K/30Hz),VGA(1080P/60Hz)
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video input
  • Audio via coaxial cable
  • Up to 32-ch Analog Video input
  • Up to 40-ch IP camera inputs (up to 6 MP)
  • Max. 800 m for 1080p and 1200 m for 720p HDTVI signal
  • 2 SATA interface,Up to 10TB capacity for each disk
HWD-6232MH-G2
This product is available with a high level of stock
HIKVISION
Offer: 842,00 € VAT Excluded
  1018,82 € VAT Included (21%)
Quantity

  • Video recorder x1
  • sata power cable x1
  • Handbook x4
  • Screws for HDD x8
  • sata data cable x2
  • AC/DC adapter x1
  • power cord x1
  • Mouse x1

Video/Audio input
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input 32-ch
HDTVI input 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
*: The 3 MP signal input is only available for channel 1/2/3/4.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
IP video input 8-ch (up to 40-ch)
Audio compression G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video/Audio output
HDMI/VGA output VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolution When 1080p lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Main stream Frame rate Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Sub-stream Frame Rate Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 16-ch
Network management
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard disk
SATA Interface 2 SATA interfaces
Hard Disk Capacity Up to 10 TB capacity for each disk
External interface
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
USB interface Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
General
Power supply 12 VDC
Consumption (without HDD) ≤ 65 W
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD) ≤ 2 kg (4.4 lb)
