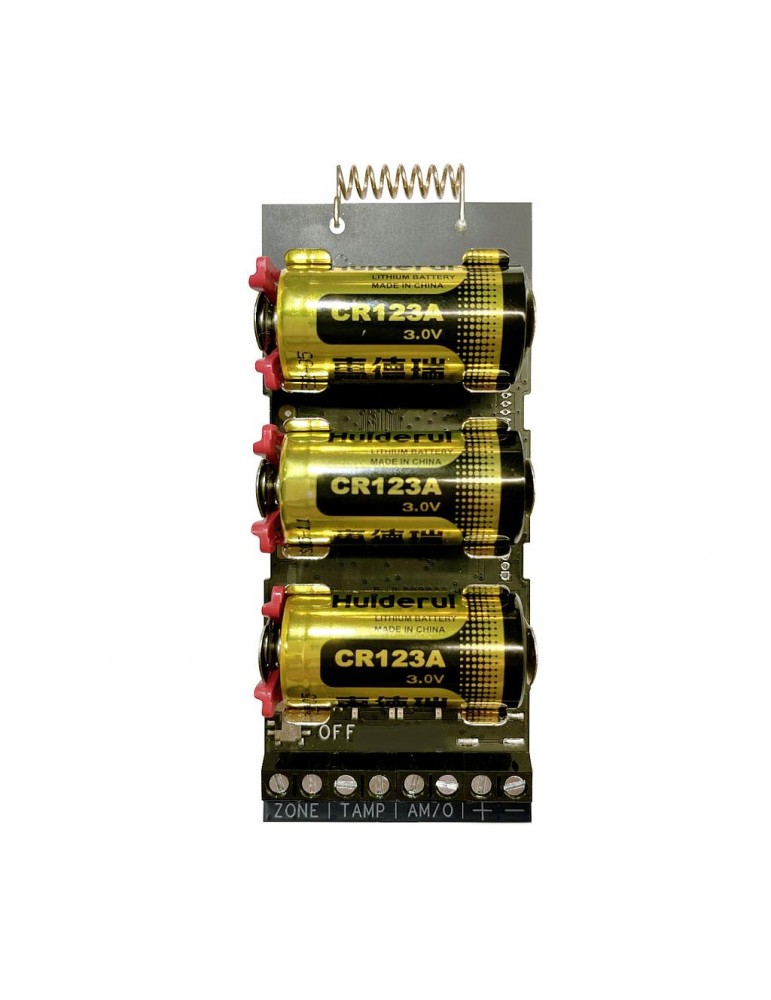

[DS-PM1-D] HIKVISION AX PRO Single Input Transmitter Alarm Accessories

[DS-PM1-D] HIKVISION AX PRO Single Input Transmitter Alarm Accessories

  • Small size design, which can be put into wired detector easily
  • 868MHz two-way wireless communication
  • LED display, show the real status of device
  • With one tamper input and one PGM, can be used as zone input or alarm outpout
  • With 3.3v voltage output, can be used to power up external wired detector
  • Detection of device removal by accelerometer
DS-PM1-I1-WE
We do not have stock available for this product
HIKVISION
Offer: 35,00 € VAT Excluded
  42,35 € VAT Included (21%)
Quantity
This product is out of stock, we can order it for you quickly, contact us:
Telephone：+34 910 35 36 71

Description
  • Hardware features
  • Serial port1
  • Power switch1
  • Alarm input1 Alarm, 1 Tamper
  • Alarm output1 PGM, AM/Output
  • 3.3v Output1, up to 10mA
  • Electrical characteristics
  • Power supply3 CR123
  • Operation humidity10%~90%
  • Operation temperature–10℃ ~ 55℃
  • Power consumption

    Quiescent current: 40.29 uA

    Max current: 47.85mA

    Voltage: 3 VDC

  • Battery life spanMore than 5 years (report alarm 50 times per day)
  • Wireless transmission
  • RF frequency868MHz
  • RF methodTwo-way communication
  • RF modulation2GFSK
  • RF distance1700m
  • Display
  • Indicator3: Alarm/Tamper（Red）, Fault（Amber）, Signal Strength（Green/Red）
  • General
  • Installation methodPut inside Wireless Ready Detector
  • Dimension(WxHxD)102*41*20mm
  • 35g(Without Battery), 90g(With Battery)
