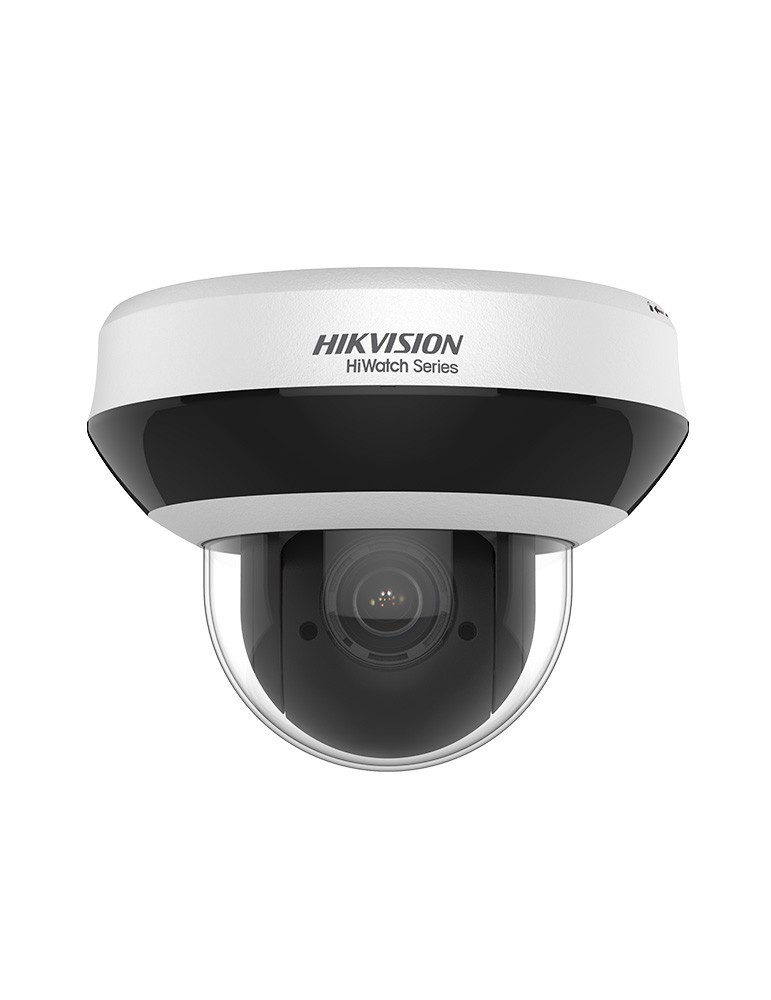

[HWP-N2204IH-DE3(C)] HIKVISION PTZ Compact IP Camera Hiwatch 2MP
- 1/3" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination: Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- 4× optical zoom, 16 × digital zoom
- 120 dB WDR, 3D DNR, EIS,
- Regional Exposure, Regional Focus
- 12 VDC & PoE
- Up to 20 m IR distance
- IK10, IP66
- Support H.265+/H.265 video compression
- Built-in microphone
| Camera Module | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| Day & Night | IR Cut Filter |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s 60Hz: 1/1 s to 1/30,000 s |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| Zoom Speed | Approx. 2 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 109° to 34° (Wide-Tele) Vertical field of view: 57° to 19° (Wide-Tele) Diagonal field of view: 135° to 39° (Wide-Tele) |
| Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F2.7 |
| IR | |
| IR Distance | 20 m |
| Smart IR | Support |
| PTZ | |
| Pan and Tilt Range | Pan: 0° to 330°, Tilt: 0° to 90° |
| Pan and Tilt Speed | Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
| Proportional Zoom | Support |
| Number of Preset | 300 |
| Power-off Memory | Support |
| Compression Standard | |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2) |
| Smart Feature | |
| Basic Event Detection | Motion Detection, Video Tampering Detection, Exception |
| Smart Event Detection | Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection |
| ROI encoding | Main stream, sub-stream, and third stream respectively support two fixed areas. |
| Smart Record | ANR (Automatic Network Replenishment), Dual-VCA |
| Image | |
| Max. Image Resolution | 1920 × 1080 |
| Stream | Support three Streams |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | 3D DNR, HLC, EIS, Regional Exposure, Regional Focus |
| Network | |
| Network Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| API | Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Mini SD Memory Card | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| Interface | |
| Audio Input | 1-ch |
| Audio Output | 1-ch |
| Network Interface | 1 RJ45 10 M/100 M Ethernet, PoE |
| General | |
| Power | 12 VDC & PoE Max.: 12 W (Max. 3.9 W for IR) |
| Working Temperature | -20°C to 60°C (-4°F to 140°F) |
| Working Humidity | ≤ 90% |
| Protection Level | IP66 Standard, IK 10, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy, PC, PC+ABS |
| Dimensions | Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00") |
| Weight (approx.) | Approx. 0.53 kg (1.17 lb) |
HWP-N2204IH-DE3(C)
Data sheet
- Píxel
- 2 Mpx
- Material
- Metal
- Optical Zoom
- 4x
