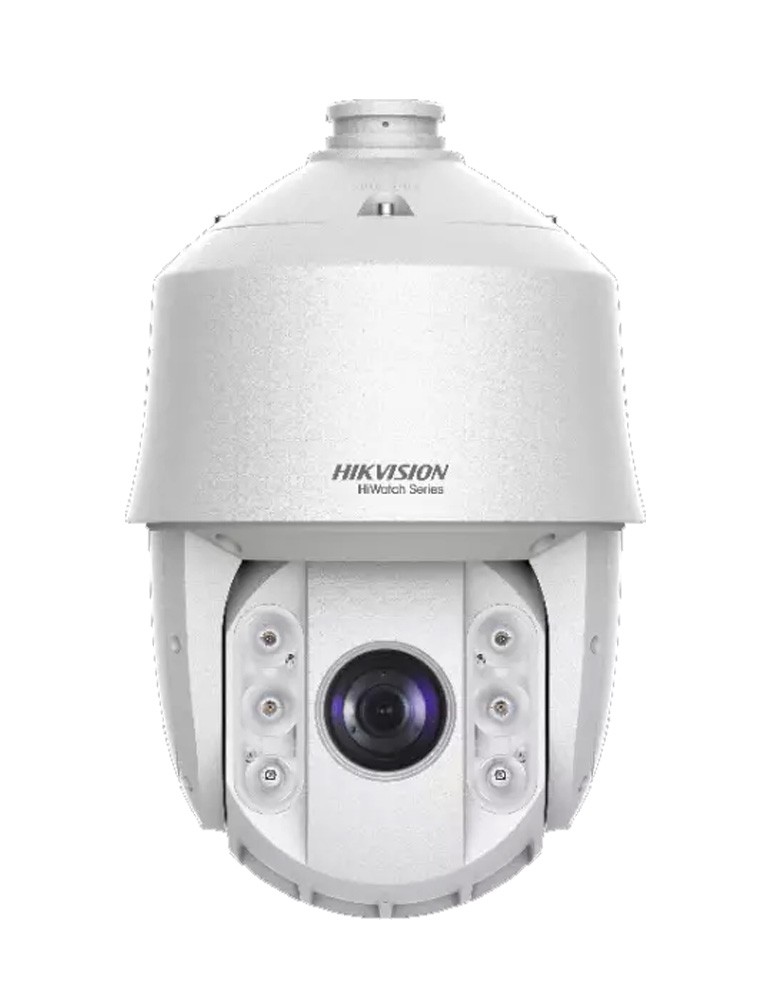

[HWP-N5225IH-AE(D)] HIKVISION 5-inch 2MP 25X Powered by DarkFighter IR Network Speed Dome

  • Four-inch 5 MP camera with pan, tilt and zoom (25x) ability
  • Clear imaging against strong back light
  • Excellent night-time performance with up to 100 m enhanced IR
  • Water and dust resistant (IP66).
HWP-N5225IH-AE(D)
This product is available with a low stock level
HIKVISION
Model
Offer: 442,15 € VAT Excluded
  535,00 € VAT Included (21%)
Quantity
report_problem Last items in stock

Description
  • Camera
  • Image Sensor1/2.8" progressive scan CMOS
  • Max. Resolution1920 × 1080
  • Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/1 s to 1/30,000 s
  • Day & NightIR Cut Filter
  • Zoom25x optical, 16x digital
  • Lens
  • Focal Length4.8 mm to 120 mm, 25× optical
  • FOV

    Horizontal field of view: 57.6° to 2.5° (wide-tele),

    Vertical field of view: 34.4° to 1.4° (wide-tele),

    Diagonal field of view: 64.5° to 2.9° (wide-tele)

  • FocusAuto, semi-auto, manual
  • ApertureF1.6 to F3.5
  • Zoom SpeedApprox. 3.2 s (optical lens, wide-tele)
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 150 m
  • Smart Supplement LightYes
  • PTZ
  • Movement Range (Pan)360° endless
  • Movement Range (Tilt)From -15° to 90° (Auto-flip)
  • Pan SpeedConfigurable, from 0.1°/s to 120°/s, Preset Speed: 120°/s
  • Tilt SpeedConfigurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s
  • Proportional PanYes
  • Presets300
  • Preset FreezingYes
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans, record time over 10 minutes for each scan
  • Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PTZ Status DisplayYes
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
  • Power-off MemoryYes
  • Video
  • Main Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

  • Sub-Stream

    50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),

    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)

  • Third Stream

    50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),

    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  • Video Compression

    Main Stream: H.265+/H.265/H.264+/H.264,

    Sub-Stream: H.265/H.264/MJPEG,

    Third Stream: H.265/H.264/MJPEG

  • Video Bit Rate32 Kbps to 16384 Kbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)Main stream, sub-stream and third stream respectively support four fixed areas
  • Audio
  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
  • Audio Bit RateG.711alaw/G.711ulaw: 64 Kbps, G.722.1/G.726: 16 Kbps, MP212/PCM: 32 Kbps to 160 Kbps
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface, ISAPI, SDK, ISUP
  • User/HostUp to 32 users. 3 levels: Administrator, Operator and User
  • SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
  • Network StorageNAS (NPS, SMB/ CIPS), ANR
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
  • Wide Dynamic Range (WDR)120 dB
  • DefogDigital defog
  • Image StabilizationNo
  • Image EnhancementBLC, HLC, 3D DNR
  • Privacy Mask24 programmable privacy masks
  • Regional FocusYes
  • Regional ExposureYes
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE+
  • On-board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
  • Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
  • Alarm2 inputs, 1 output
  • Event
  • Basic EventMotion Detection, Video Tampering Detection, Exception Detection
  • Smart EventIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection
  • General
  • Power

    24 VAC, 2.2 A, 50/60 Hz & Hi-PoE 42.5 to 57 VDC, 1.41 A

    Max. 18 W

  • DimensionØ 213.4 mm × 345 mm (Ø 8.40" × 13.58")
  • WeightApprox. 3.3 kg (7.28 lb)
  • MaterialADC 12, PC+10% GF
  • Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1)

    CB (IEC 62368-1:2014+A11);

    CE-LVD (EN 62368-1:2014+A11:2017),

    BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);

    LOA (IEC/EN 60950-1)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIP66 (IEC 60529-2013), 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
HWP-N5225IH-AE(D)

Data sheet

Píxel
2 Mpx
Material
Metal
Optical Zoom
25x

Specific References

isbn
11123
upc
0103030016
