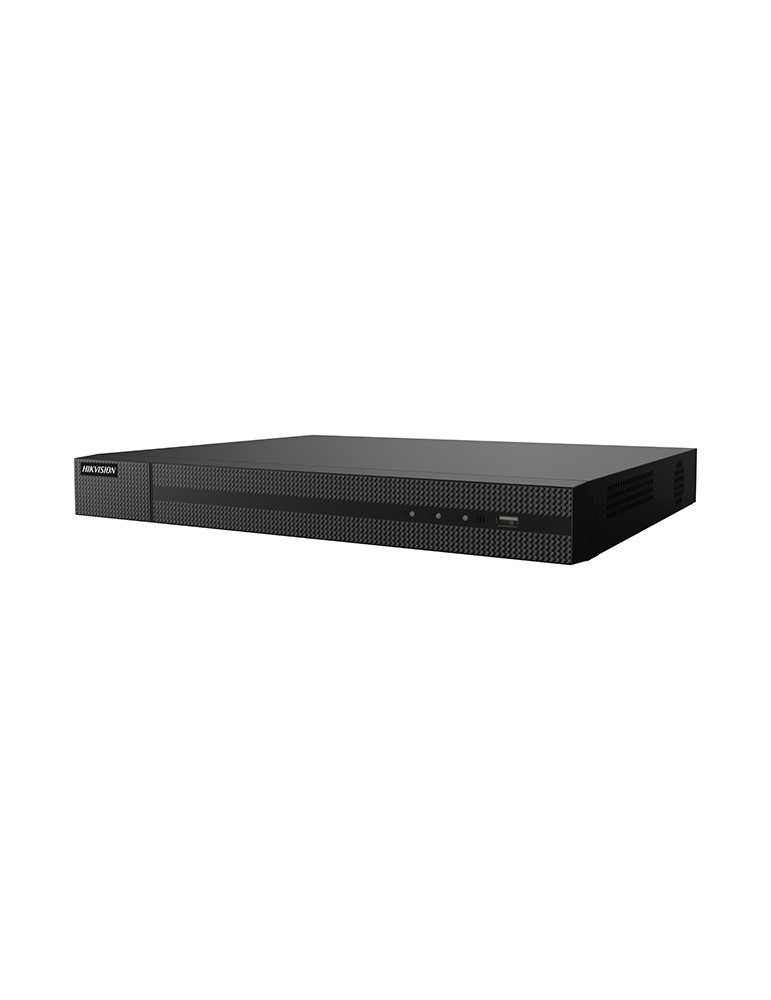

[HWN-2104MH-4P(STD)(C)] HIKVISION HWN-2100 Series Network Video Recorder
- H.265+/H.265/H.264+/H.264 video compression
- Up to 40 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 4-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
- 4CH 4Interfaces 1080P 6MP 60Mbps SATA
- NVR Recorder x1
- Network cable 1.5M x1
- sata power cable x1
- quick guide x1
- Screws for HDD x4
- sata data cable x1
- power cord x1
- AC/DC adapter x1
- Mouse x1
| Video/Audio input | |
| IP video input | 4-ch Up to 6 MP resolution |
| Network | |
| Incoming bandwidth | 40 Mbps |
| Outgoing bandwidth | 60 Mbps |
| Remote connection | 16 |
| Video/Audio output | |
| Recording resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output resolution | 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
| Decoding | |
| Decoding format | H.265+/H.265/ H.264+/H.264 |
| Live view/Playback resolution | 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Decoding Capability | 4-ch@1080p (25 fps), 1-ch@6 MP (25 fps) |
| Network management | |
| Network protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™ |
| Camera protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™ |
| Hard Disk | |
| SATA | 1 SATA interface |
| Hard Disk Capacity | Up to 6TB capacity for each disk |
| External interface | |
| Network interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| USB interface | 2 × USB 2.0 |
| POE Interface | |
| Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 36W |
| POE Supported standard | IEEE 802.3 af/at |
| General | |
| Power supply | 48 VDC |
| Power | ≤ 50W |
| Consumption (without hard disk and PoE) | ≤ 10 W |
| Working temperature | -10 to +55º C (+14 to +131º F) |
| Working humidity | 10 % to 90 % |
| Chassis | 1U chassis |
| Dimensions(W × D × H) | 260 × 225 × 48 mm (10.2" × 8.9" × 1.9") |
| Weight | ≤ 1 kg (2.2 lb) |
| Certification | |
| CE | EN50130-4, EN 61000-3-2,EN 61000-3-3 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
HWN-2104MH-4P(STD)(C)
Data sheet
- Material
- Metal
- Discs
- 1
- Decoding Capability
- 4-ch @ 1080P
- Video Inputs
- 4
- POE Ports
- 4
