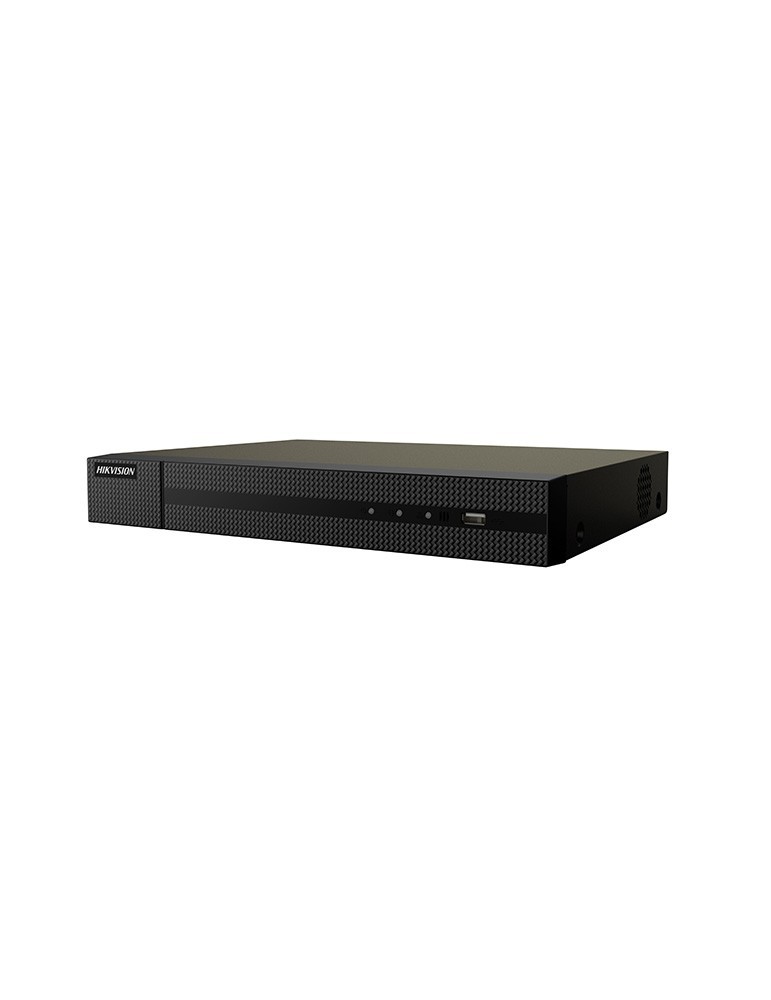

[HWN-4104MH(C)] HIKVISION HiWatch Network Video Recorder for IP Camera HWN-4100 Series NVR
- Output resolution up to:HDMI(4K/30Hz),VGA(1080P/60Hz)
- H.265+/H.265/H.264+/H.264 video compression
- Up to 4-ch IP camera input (up to 8 MP)
- Up to 1-ch@8MP/4-ch@1080P decoding capability
- 1 SATA interface,Up to 6TB capacity for each disk
- 4K 4CH Video 8MP 80Mbps
- NVR Recorder x1
- Network cable 1.5M x1
- SATA power cable x1
- quick guide x1
- Screws for HDD x4
- SATA data cable x1
- AC/DC adapter x1
- Mouse x1
| Video/Audio input | |
| IP video input | 4-ch Up to 8 MP resolution |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
| Network | |
| Incoming bandwidth | 40 Mbps |
| Outgoing bandwidth | 80 Mbps |
| Remote connection | 16 |
| Video/Audio output | |
| Recording resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| HDMI output resolution | 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
| VGA output resolution | 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Decoding | |
| Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
| Live view/Playback resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Synchronous playback | 4-ch |
| Decoding Capability | 1-ch @ 8 MP / 4-ch @ 1080p |
| Stream type | Video, Video & Audio |
| Network management | |
| Network protocols | IPv6, HTTPS, UPnP, NTP, SADP, SMTP, PPPoE, DDNS, iSCSI, NFS |
| Interoperability | ONVIF 2.2 |
| Camera protocol | HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO |
| Hard Disk | |
| SATA | 1 SATA interface |
| Hard Disk Capacity | Up to 6 TB capacity for each disk |
| External interface | |
| Network interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| USB interface | Rear Panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC, ≤ 18 W |
| Consumption(without hard disk) | ≤ 10 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimensions(W × D × H) | 260 × 223 × 48 mm (10.2" × 8.8" × 1.9") |
| Weight | ≤ 1 kg (2.2 lb) |
| Certification | |
| CE | EN 55032:2015; EN 50130-4:2011+A1:2014; EN 61000-3-2:2014; EN 61000-3-3:2013 |
| FCC | FCC Part15 sub B; ANSI C63.4 |
HWN-4104MH(C)
Data sheet
- Material
- Metal
- Discs
- 1
- Decoding Capability
- 4-ch @ 1080P
- Video Inputs
- 4
