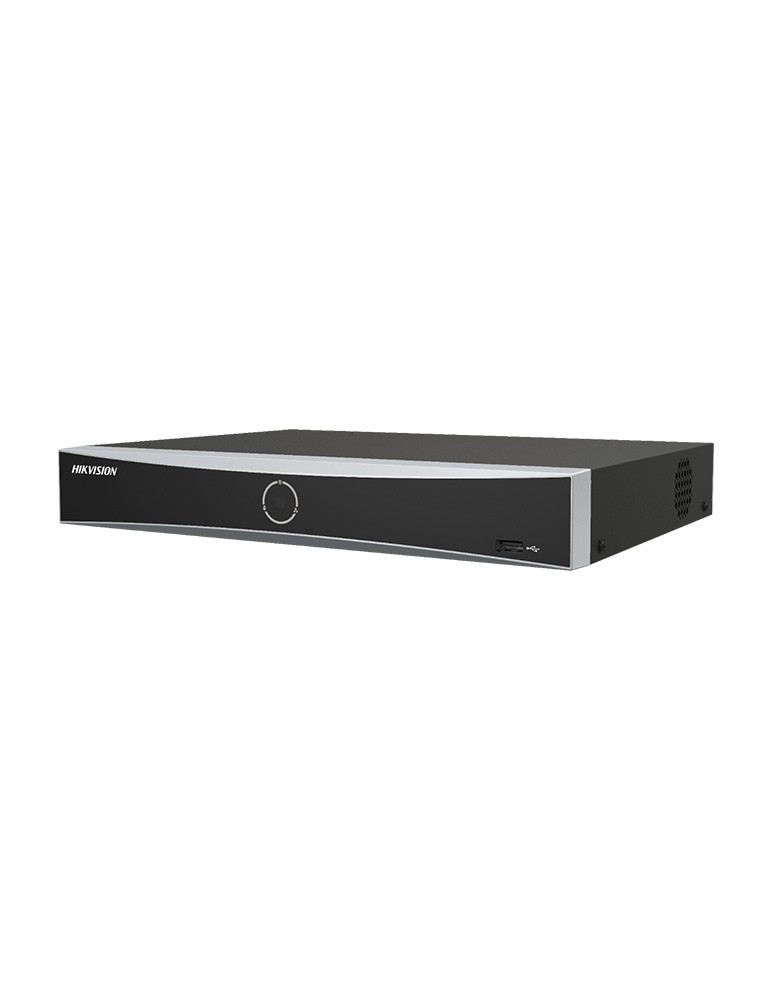

[DS-7608NXI-K1] HIKVISION HiWatch Network Video Recorder for IP Camera 4K NVR 1U K Series AcuSense 8-ch

[DS-7608NXI-K1] HIKVISION HiWatch Network Video Recorder for IP Camera 4K NVR 1U K Series AcuSense 8-ch

  • Up to 8-ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
  • Up to 80 Mbps incoming bandwidth
  • Adopt Hikvision Acusense technology to minimize manual effort and security costs
DS-7608NXI-K1
We do not have stock available for this product
HIKVISION
Offer: 136,36 € VAT Excluded
  165,00 € VAT Included (21%)
Quantity
This product is out of stock, we can order it for you quickly, contact us:
Telephone：+34 910 35 36 71

  • NVR Recorder x1
  • Network cable 1.5M x1
  • SATA power cable x1
  • quick guide x1
  • Screws for HDD x4
  • SATA data cable x1
  • AC/DC adapter x1
  • Mouse x1

  • Facial Recognition
  • Facial Detection and AnalyticsFace picture comparison, human face capture, face picture search
  • Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
  • Facial Detection and Analytics Performance1-ch human face capture
  • Face Picture Comparison4-ch face picture comparison alarm
  • Motion Detection 2.0
  • Human/Vehicle Analysis8-ch
  • Perimeter Protection
  • Human/Vehicle AnalysisUp to 2-ch 4 MP (HD network camera, up to 8 MP, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
  • Video and Audio
  • IP Video Input8-ch
  • Incoming Bandwidth80 Mbps
  • Outgoing Bandwidth80 Mbps
  • HDMI Output1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA independent output
  • CVBS OutputN/A
  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
  • Decoding
  • Decoding FormatH.265/H.265+/H.264+/H.264
  • Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Synchronous Playback8-ch
  • Decoding Capability

    AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

    AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

  • Stream TypeVideo, Video & Audio
  • Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC
  • Network
  • Remote Connection128
  • Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each HDD
  • USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
  • Alarm In/OutN/A (4/1 is optional)
  • General
  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 10 W (without HDD)
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
  • Weight≤ 1 kg (without HDD, 2.2 lb.)
  • Certification
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
DS-7608NXI-K1

Data sheet

Material
Metal
Discs
1
Decoding Capability
8-ch @ 1080P
Video Inputs
8
