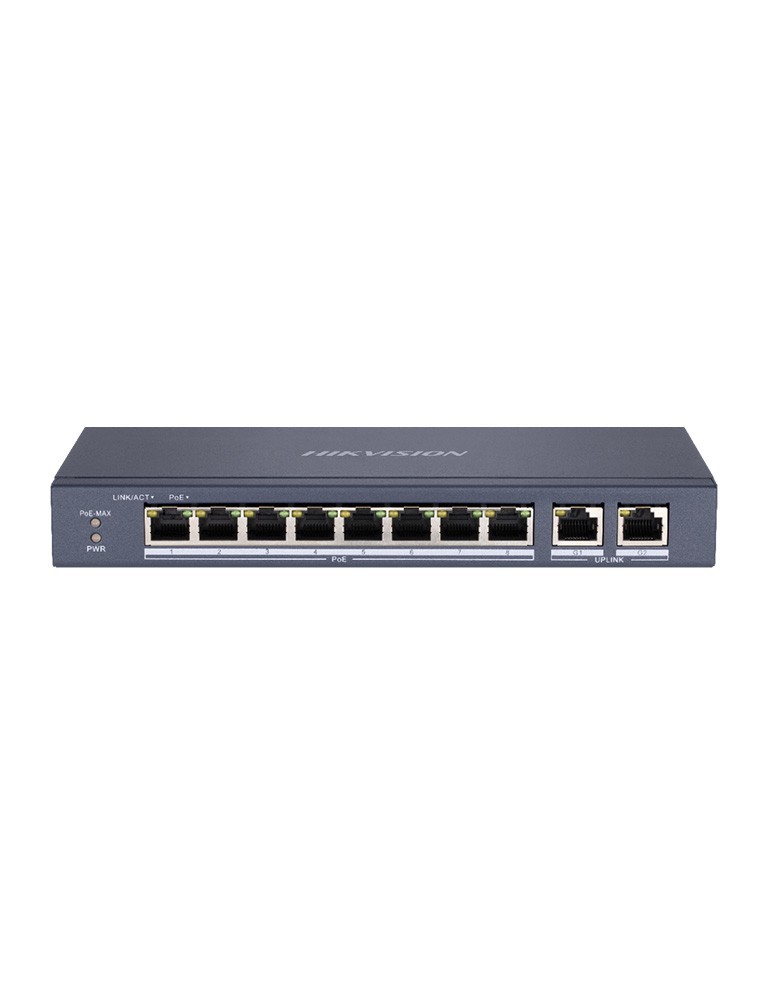

[DS-3E0310P-E/M] HIKVISION Hiwatch 8 Port Fast Ethernet Unmanaged POE Switch RJ45 10/100Mbps

[DS-3E0310P-E/M] HIKVISION Hiwatch 8 Port Fast Ethernet Unmanaged POE Switch RJ45 10/100Mbps

  • 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
  • IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
  • 6 KV surge protection for PoE ports.
  • Up to 300 m long-range transmission.
  • Wire-speed forwarding.
  • Store-and-forward switching.
  • Solid high-strength metal shell.
  • Reliable fan-free design.
DS-3E0310P-E/M
This product is available with a high level of stock
HIKVISION
Offer: 95,00 € VAT Excluded
  114,95 € VAT Included (21%)
Quantity

  • Switch x1
  • adaptador de CA/CC x1
  • Manual de usuario x1

  • Network Parameters
  • Ports8 × 10/100Mbps PoE ports, and 2 × gigabit RJ45 ports
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working ModeStandard mode (default), Extend mode
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
  • Forwarding ModeStore-and-forward switching
  • High Priority PortsNA
  • MAC Address Table16 K
  • Switching Capacity5.6 Gbps
  • Packet Forwarding Rate4.1664 Mpps
  • Internal Cache4 Mbits
  • PoE Power Supply
  • PoE StandardIEEE 802.3af,IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPorts 1 to 8
  • Max. Port Power30 W
  • PoE Power Budget60 W
  • Dialing Function
  • Long RangePorts 1 to 8: up to 300 m; and the speed rate of the port is 10 Mbps.
  • General
  • Dimensions (W × H × D)217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
  • ShellMetal material, fan-free design
  • Gross Weight1.20 kg (2.65 lb)
  • Net Weight0.56 kg (1.23 lb)
  • Operating Temperature–10 °C to 40 °C (14 °F to 104 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Power Consumption in Idle< 5 W
  • Power Supply48 VDC, 1.35 A
  • Max. Power Consumption65 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
DS-3E0310P-E/M

Data sheet

Material
Metal
POE Ports
8
