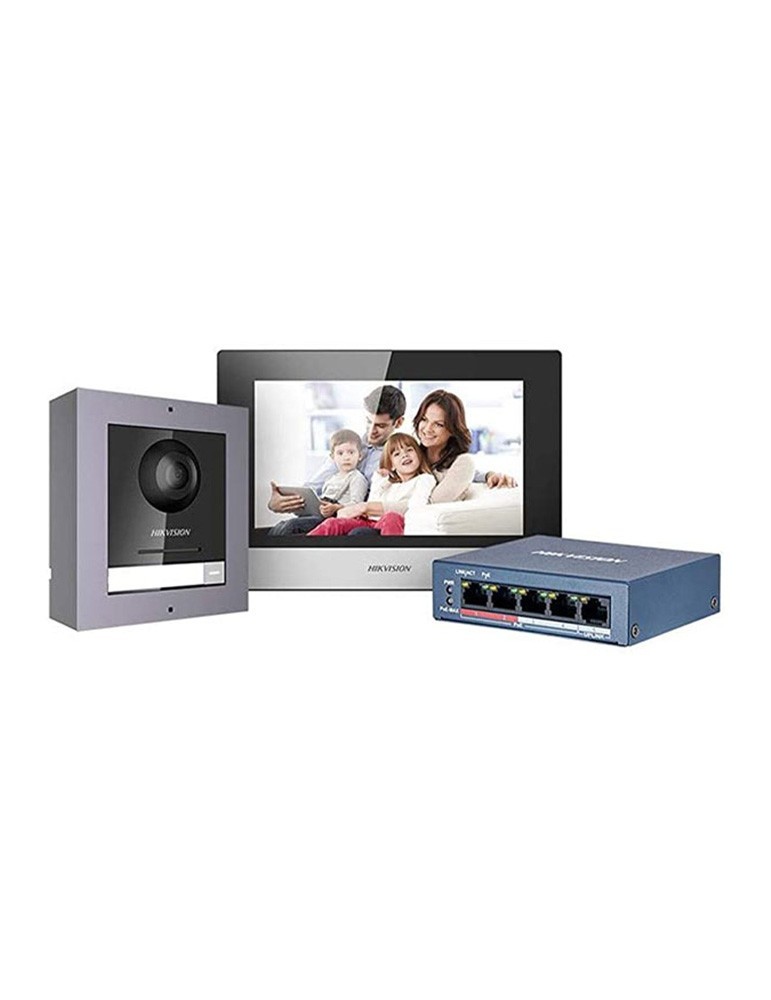

[DS-KIS602(B)] HIKVISION Video Intercom KIT Intercom with Interior Station and Door Station
- IP video intercom kit for villa or house, only one call button
- DS-KD8003-IME1(B)/Surface x1
- DS-KH6320-WTE1 x1
- 4 port standard PoE switch x1
- 16GB TF card x1
- Door station/System parameters
- Operation systemEmbedded Linux operation system
- Flash32 MB
- RAM256 MB
- Door station/Video parameters
- Camera2MP HD camera
- Night visionLow illumination IR supplement mode:3 m
- Backlight compensationSupport
- Digital noise reductionSupport
- WDRSupport
- Field of viewHorizontal: 146°, Vertical: 82°
- Video Compression StandardH.264
- Motion detectionSupport
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U, G.711 A
- Audio compression Rate64 Kbps
- Audio intercomTwo-way audio communication
- Door station/Network parameters
- Network protocolTCP/IP, RSTP
- Wired network10/100 Mbps Ethernet
- Door station/Device interfaces
- Network interface1 RJ45
- RS-485 1 (1 for Hikvision's sub module communication)
- Alarm input 4 (2 exit butttons and 2 door contacts by default)
- Debugging port1
- Lock control2 (2 relay, max to 30 V, 2 A)
- TAMPER switch1
- Power interface12 VDC power output (max to 12 V, 500 mA)
- Door station/General
- Power consumption≤ 5 W
- Working temperature -40° C to 60° C (-40° F to 140° F)
- Working humidity10% to 95%
- Dimension
Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94\" × 1.65\")
Cover:117 × 107 × 4 mm (4.61 × 4.21\" ×0.16\")
Installation Frame:117 × 107 × 32.7mm (4.61 × 4.21\" ×1.29\")"
- InstallationSurface mounting
- Protection level IP65
- Indicator0
- Power supply
IEEE802.3af, standard PoE
12 VDC
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch colorful TFT screen
- Display resolution1024 × 600
- Operation methodCapacitive touch screen
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuilt-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U, G.711 A
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network 10/100 Mbps self-adaptive
- Wireless networkWi-Fi 802.11 b/g/n
- ProtocolTCP/IP, SIP, RTSP
- RS-4851 RJ-45 10/100 Mbps self-adaptive
- Indoor station/Device interfaces
- RS-4851
- Alarm input8-ch alarm inputs
- Relay output2
- TF cardMax to 32 G, SD 2.0 or lower version
- Indoor station/General
- Power consumption≤ 6 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimension (L x W x H)200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
DS-KIS602(B)
Data sheet
- Screen Size
- 7"
- Connection Method
- IP Villa
- WiFi
- yes
