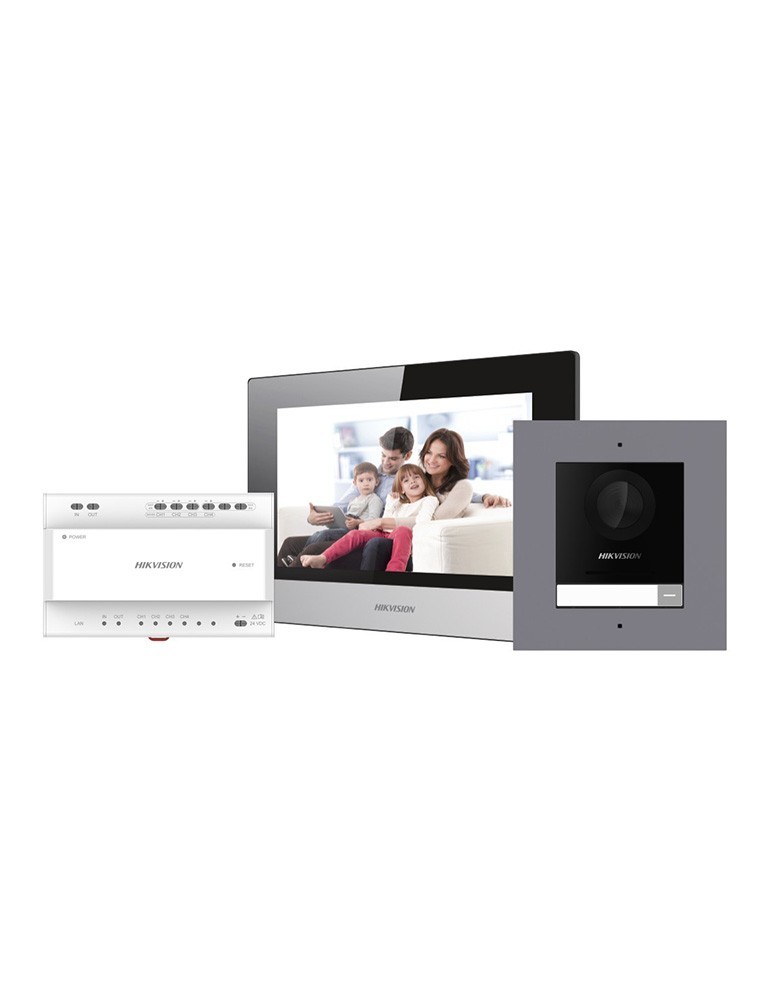

[DS-KIS702Y(O-STD)] HIKVISION Video Intercom KIT Two Wire IP Bundle For Villa Or House
- 2-wire digital IP video intercom kit for villa or house, only one call button
- DS-KD8003Y-IME2 x1
- DS-KH6320Y-WTE2 x1
- DS-KAD704Y x1
- 16GB TF card x1
- Door station/System parameters
- ProcessorEmbedded microcontroller
- Operation systemEmbedded Linux operation system
- Operation modeOne touch key
- Door station/Video parameters
- Camera
2MP super definition camera
- Resolution
Main stream: 1920 × 1080, (720p
configurable); sub stream: 720 × 480
- Night vision
Support low light and IR light supplement
mode
- Backlight compensationSupport
- Digital noise reductionSupport
- WDRTrue WDR
- Field of view
Horizontal 146°, vertical 82°
- Video Compression StandardH.264
- Stream
Main stream: 1080p@30fps, 720p@30fps
(configurable); sub stream: D1
- Motion detectionSupport
- Flash-avoid frequency50 Hz, 60 Hz
- Door station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio outputLoudspeaker, 20 cm sound effect > 80 db
- Audio qualityNoise suppression and echo cancellation
- Audio compression standardG.711 U
- Audio compression Rate64 Kbps
- Audio intercomFull-duplex two-way audio intercom
- Door station/Device interfaces
- Debugging port1
- RS-485 1 (1 for Hikvision's sub module communication)
- Alarm input 4 (2 exit butttons and 2 door contacts by default)
- Lock control2 (2 relay, max to 30 VDC, 2 A)
- TAMPER switch1
- Power interfaceTwo-wire
- Door station/General
- Working temperature-40 °C to 60 °C (-40 °F to 140 °F)
- Working humidity10% to 90%
- Dimension
100 mm × 98 mm × 42 mm (3.94" × 7.8\"
× 1.65) "
- InstallationWall mounting
- Protection level
IP 65
- Button1
- Power input
Powered by KAD704Y or KAD706Y series distributor
- Indoor station/System parameters
- Operation systemEmbedded Linux operation system
- Memory128 MB
- Flash 32 MB
- Indoor station/Display parameters
- Display screen7-inch TFT LCD
- Display resolution1024 × 600
- Operation methodCapacitive touch
- Indoor station/Audio parameters
- Audio inputBuilt-in omnidirectional microphone
- Audio output
Built-in loudspeaker
- Audio qualityNoise suppression and echo cancellation
- Volume
Local or software control
- Audio compression standardG.711 U, G.711 A
- Audio compression Rate64 Kbps
- Indoor station/Network parameters
- Wired network
Two-wire network
- Wireless networkWi-Fi 802.11b/g/n
- Protocol
TCP/IP, SIP, RTSP
- Indoor station/Device interfaces
- Network interface
Two-wire interface
- RS-4851
- Alarm input8 zones alarm input
- Relay output2（30 V Max.）
- TF cardSupport, Max. 128 GB
- Indoor station/General
- Power supply
Powered by KAD704Y or KAD706Y distributor
- Power consumption≤ 4 W
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90%
- Dimensions (W × H × D)
200 mm × 140 mm × 23.6 mm (7.87" ×
5.51 × 0.93\")"
- Video Audio Distributor/Interfaces
- Network interface
1 RJ45
- Two-wire interface6 (2 for cascading and 4 for devices)
- Signal indicator 6
- Power indicator1
- Reset1
- Video Audio Distributor/General
- Power supply24 VDC
- Power consumptionCH1 to CH3＜4 W, CH4＜8 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
Data sheet
- Screen Size
- 7"
- Connection Method
- 2 Hilo
- WiFi
- yes
