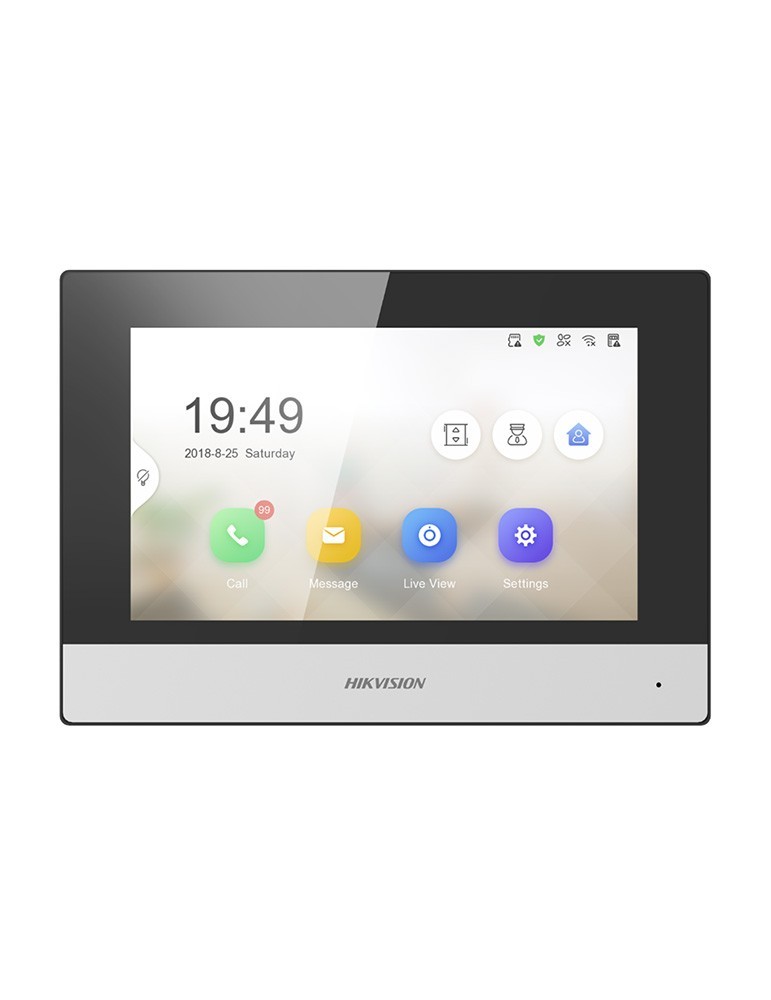

[DS-KH6320Y-WTE2] HIKVISION Two Wire Indoor Stations
- 7-inch capacitive touch-screen, Wi-Fi
- TF card support, max to 128 G
- 8-ch alarm input, 2 × relay, 1 × RS485
- Remote unlocking via the client or APP
- Views live videos of door stations and linked cameras
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- CPUEmbedded processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful TFT screen
- Resolution1024 × 600
- Video parameters
- Lens/
- FOV/
- WDR/
- Resolution/
- Focal length/
- Audio parameters
- Audio compression standardG.711 U G.711 A
- Audio inputBuilt-in omnidirectional microphone
- Audio outputBuit-in loudspeaker
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Event capacity
200 captured pictures (with TF card); 200 alarm records
2 MB RAM (without TF card) reserved for events
- Linked network camera capacity16
- Linked indoor extensions capacity5
- Notice capacity200
- Linked doorphone capacity17 IP doorphones Max.
- Network parameters
- Communication protocolTCP/IP, SIP, RTSP
- Wired network10/100 Mbps self-adaptive through 2-wire interface
- Wi-Fi standardWi-Fi 802.11 b/g/n
- Bluetooth version/
- 3G/4G standard/
- Zigbee/
- Device interfaces
- Alarm input8-ch alarm inputs
- TAMPER/
- RS-4851
- USB/
- TF cardMax to 128 G, SD 2.0 or lower version
- Alarm output
2 relays (30 V Max.)
- Two-wire IP interface1
- General
- Button0
- InstallationSurface mounting
- Indicator0
- 327 g
- Protective level/
- Power supply methodTwo-wire
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimensions200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
- Battery/
- Power supplyPowered by KAD704Y or KAD706Y series distributor
- Application environmentIndoor
- Power consumption≤ 4 W
- LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
DS-KH6320Y-WTE2(O-STD)
Data sheet
- Screen Size
- 7"
- Connection Method
- 2 Hilo
